MJ-2505
ObsoleteSame Sky (Formerly CUI Devices)
CONN JACK MONO 2.5MM PNL MNT

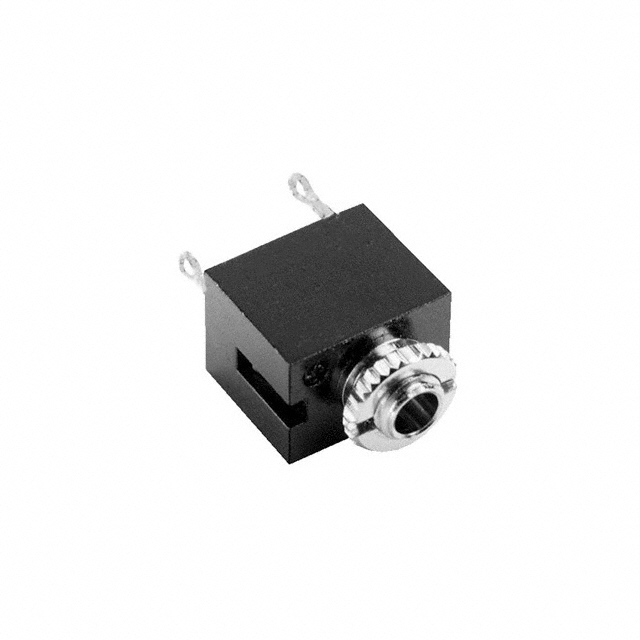

MJ-2505
ObsoleteSame Sky (Formerly CUI Devices)
CONN JACK MONO 2.5MM PNL MNT
Description
General part information
MJ-2505
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | MJ-2505 |
|---|---|
| Actual Diameter | 0.102 in |
| Body Color | Black, Silver |
| Connector Type | Phone Jack |
| Contact Material | Brass |
| Contact Material - Plating | Silver |
| Current Rating | 1 A |
| Features | Mounting Hardware, Thread Lock |
| Gender | Female |
| Housing Material | PC, Polycarbonate |
| Includes | Nut, Connector |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (Headphone - Miniature) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone - Sub Mini) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Miniature, Sub Mini |
| Internal Switch(s) | Single Switch |
| Mounting Type | Panel Mount, Through Hole |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Panel Hole Size | 0.197 in |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Thread Size | M4 |
| Voltage - Rated | 12 VAC |
