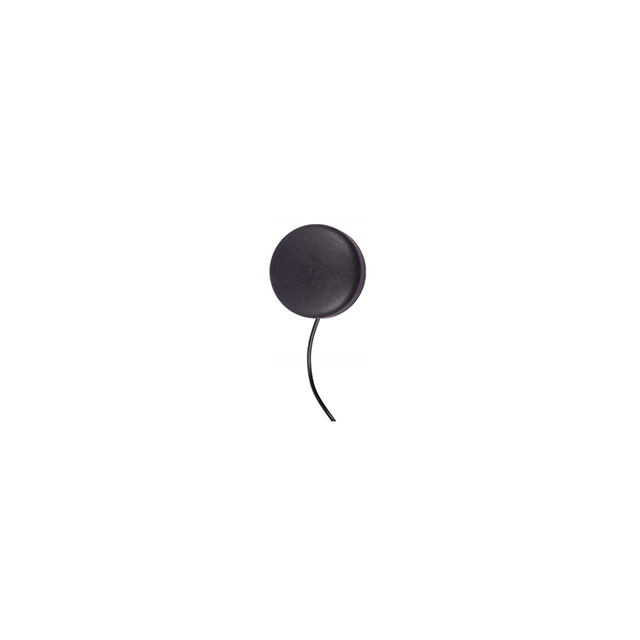

BB-AO-ALTE-36S
ObsoleteAdvantech Corporation
ANTENNA LTE, SMA-M
BB-AO-ALTE-36S
ObsoleteAdvantech Corporation
ANTENNA LTE, SMA-M
Description
General part information
BB-AO-ALTE-36S
RF ANTENNA LTE Dome SMA Male
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-AO-ALTE-36S |
|---|---|
| Antenna Type | Dome |
| Applications | LTE |
| Features | Cable, 3m |
| Frequency (Center/Band) | 1.7GHz, 700MHz, 2.5GHz, 800MHz, 2.1GHz, 2.7GHz, 1.8GHz, 900MHz, 2.6GHz |
| Frequency (Center/Band) - 1 | 700 MHz |
| Frequency (Center/Band) - 2 | 800 MHz |
| Frequency (Center/Band) - 3 | 900 MHz |
| Frequency (Center/Band) - 4 | 1.7 GHz |
| Frequency (Center/Band) - 5 | 1.8 GHz |
| Frequency (Center/Band) - 6 | 2.1 GHz |
| Frequency (Center/Band) - 7 | 2.5 GHz |
| Frequency (Center/Band) - 8 | 2.6 GHz |
| Frequency (Center/Band) - 9 | 2.7 GHz |
| Frequency Group | Wide Band |
| Gain | 2 dBi |
| Height (Max) | 0.969 in |
| Number of Bands | 9 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2 |
