N844B-10M-12-P
ActiveEaton Tripp Lite
40/100/400G MULTIMODE 50/125 OM3
N844B-10M-12-P
ActiveEaton Tripp Lite
40/100/400G MULTIMODE 50/125 OM3
Description
General part information
N844B-10M-12-P

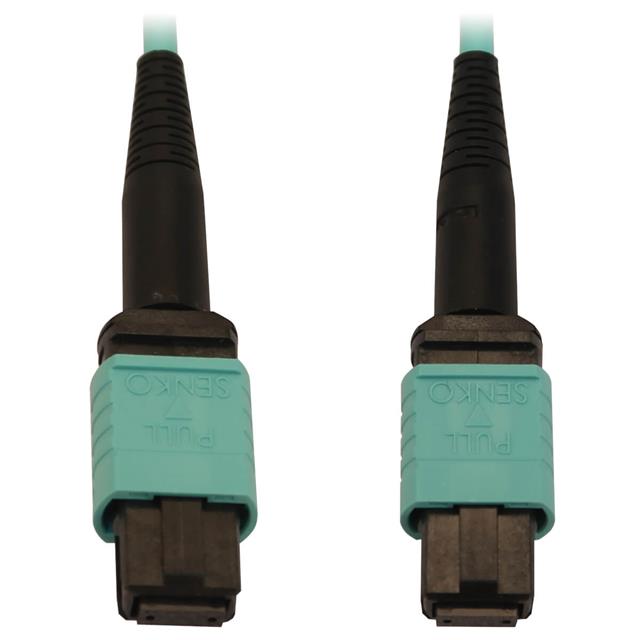

Cable Fiber Optic MTP To MTP 50/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N844B-10M-12-P |
|---|---|
| 1st Connector | MTP |
| 2nd Connector | MTP |
| Bend Radius | 10 mm |
| Cable Diameter | 0.12 " |
| Color - Cable | Aqua |
| Color - Connectors | Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.35 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 32.8 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Multimode, OM3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
