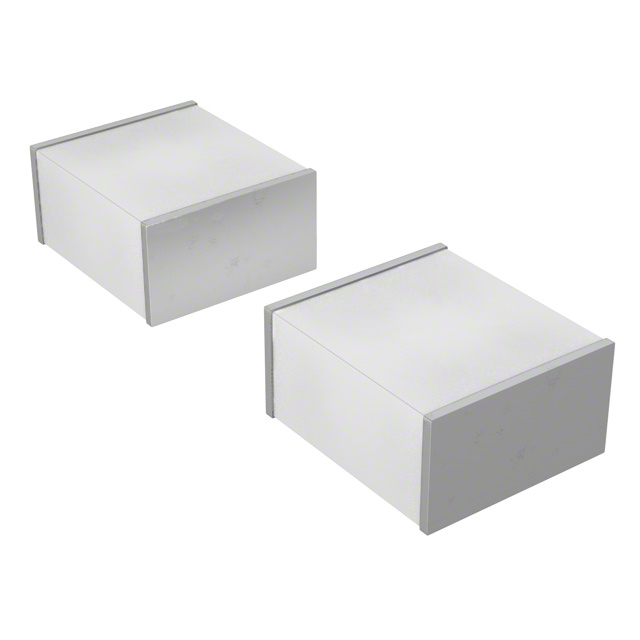

FCN2825E184K-Y
ObsoleteCornell Dubilier Knowles
CAP FILM 0.18UF 10% 250VDC 2825
FCN2825E184K-Y
ObsoleteCornell Dubilier Knowles
CAP FILM 0.18UF 10% 250VDC 2825
Description
General part information
FCN2825E184K-Y
0.18 µF Film Capacitor 250V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 2825 (7163 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | FCN2825E184K-Y |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.18 µF |
| Dielectric Material | Polyester, Metallized - Stacked, Polyethylene Naphthalate (PEN) |
| Height - Seated (Max) | 0.169 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2825 (7163 Metric) |
| Package Name | 2825 |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.248 in |
| Termination | Solder Pads |
| Tolerance | 10 % |
| Voltage Rating - DC | 250 VDC |
