Description
General part information

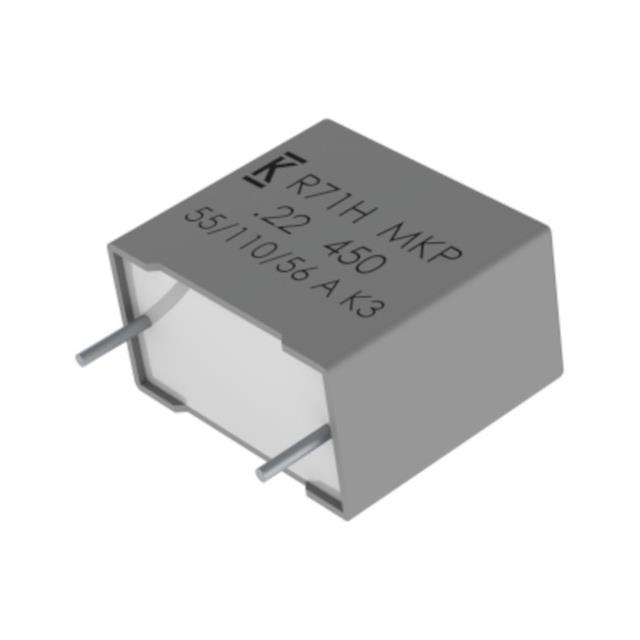

R71XI368050H0K
CAP FILM METAL RAD POLYPROP
Technical Specifications
Parameters and characteristics for this part
| Specification | R71XI368050H0K |
|---|---|
| Applications | High Frequency, Automotive, Power Factor Correction (PFC), DV/DT, Switching, High Pulse |
| Capacitance | 0.68 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 53 mOhm |
| Height - Seated (Max) | 0.476 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 450 V |
