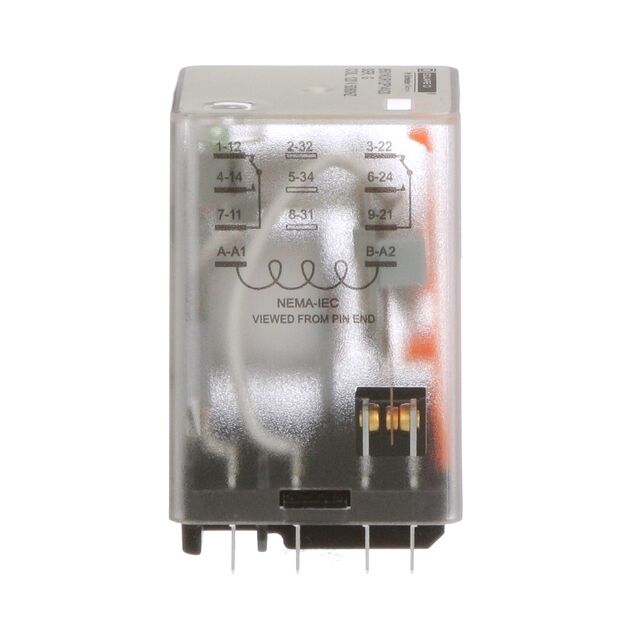

8501KUR12P14V20
ObsoleteSCHNEIDER ELECTRIC
RELAY 2CO QC PIN 10A@240V 120VAC
8501KUR12P14V20
ObsoleteSCHNEIDER ELECTRIC
RELAY 2CO QC PIN 10A@240V 120VAC
Description
General part information
8501KUR12P14V20
General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
Technical Specifications
Parameters and characteristics for this part
| Specification | 8501KUR12P14V20 |
|---|---|
| Approval Agency | UR, UL, CSA, CE |
| Coil Type | Non Latching |
| Coil Voltage | 120 V |
| Contact Form | Form, 2 Form C, C, 2, DPDT |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator |
| Mounting Type | Socketable |
| Operate Time | 20 ms |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 300 VAC |
| Switching Voltage DC (Max) | 30 VDC |
| Termination Style | Plug In |
