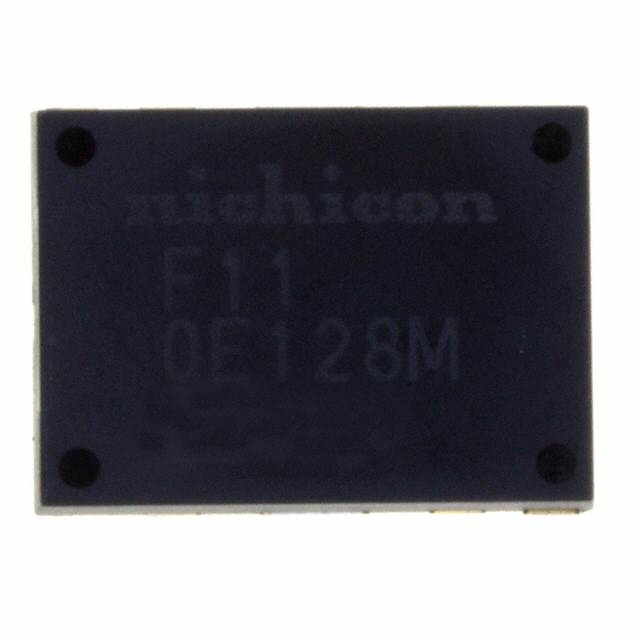

Specification	F110E128MFK

Applications	General Purpose
Capacitance	1200 µF
ESR (Equivalent Series Resistance)	5 mOhm
Height - Seated (Max)	0.098 in
Lifetime	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard SMD
Polarization	Polar
Ripple Current	6.3 A
Size / Dimension Length	0.658 in
Size / Dimension Width	0.477 in
Surface Mount Land Length	0.657 in
Surface Mount Land Width	0.476 in
Tolerance	20 %
Voltage - Rated	2.5 V
