MMF405389
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-13-125UNA-120/P2 - STRAIN GA
MMF405389
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-13-125UNA-120/P2 - STRAIN GA
Description
General part information
MMF405389

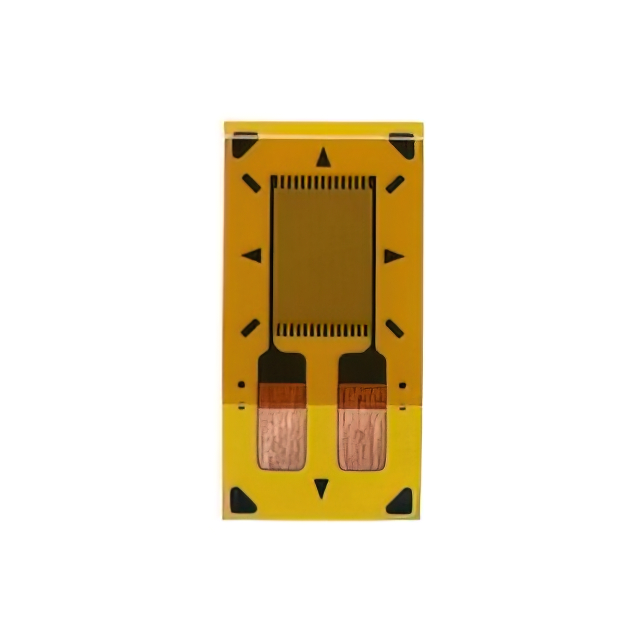

Linear Strain Gauge ±5% 0.125" (3.18mm) 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405389 |
|---|---|
| Length - Active | 0.125 in |
| Length - Overall | 0.38 in |
| Length - Overall Pattern | 0.275 in |
| Length - Overall Pattern (mm) | 6.99 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Linear |
| Resistance | 120 Ohm |
| Resistance Tolerance (%) | 0.3 % |
| Strain Range | 5 % |
| Width - Active | 0.1 in |
| Width - Overall | 0.19 in |
| Width - Overall Pattern | 0.12 in |
