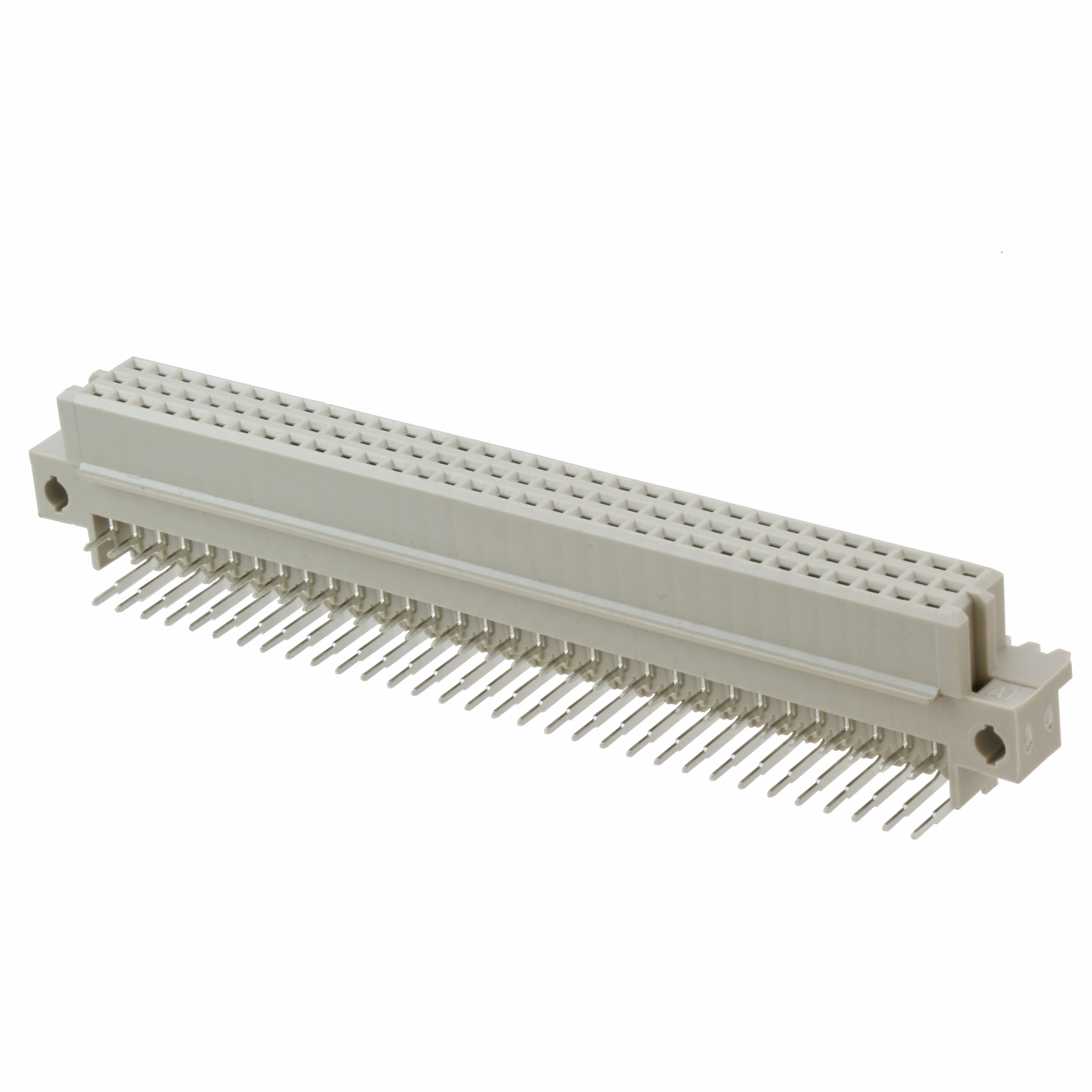

Specification	650870-5

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	2
Material - Insulation	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	96
Number of Positions Loaded	64
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	R
Termination	Solder

Eurocard Type R Series

...

Part	Material - Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Style	Pitch	Level, Class	Termination	Number of Positions Loaded	Connector Type	Contact Finish	Mounting Type	Number of Positions	Number of Rows	Features	Number of Positions Loaded
TE Connectivity AMP Connectors 650918-5	Glass Filled Polyester	125 °C	-55 °C	UL94 V-0	R/2 (1/2 R)	0.1 in	2	Press-Fit	All	Male Pins Plug	Gold	Through Hole	48	3
TE Connectivity AMP Connectors 5650889-5					R	0.1 in	2	Press-Fit	All	Male Pins Plug	Gold	Through Hole	96	3
TE Connectivity AMP Connectors 5536096-5	Glass Filled Polymer Thermoplastic	125 °C	-55 °C		R	0.1 in	2	Press-Fit	All	Male Pins Plug	Gold	Through Hole	150	3
TE Connectivity AMP Connectors 536016-5	Glass Filled Polyester				R	0.1 in	2	Solder		Female Sockets Receptacle		Right Angle Through Hole	150	3	Board Lock	100
TE Connectivity AMP Connectors 650868-5	Glass Filled Polyester	125 °C	-55 °C	UL94 V-0	R/2 (1/2 R)	0.1 in	2	Solder	All	Female Sockets Receptacle	Gold	Right Angle Through Hole	48	3
TE Connectivity AMP Connectors 5650919-5	Glass Filled Polymer Thermoplastic	125 °C	-55 °C	UL94 V-0	R	0.1 in	2	Solder	All	Male Pins Plug	Gold	Through Hole	120	3
TE Connectivity AMP Connectors 148292-5	Glass Filled Polyester	125 °C	-55 °C	UL94 V-0	R	0.1 in	2	Press-Fit	All	Female Sockets Receptacle	Gold	Right Angle Through Hole	96	3
TE Connectivity AMP Connectors 5650462-4					R	0.1 in	2	Solder	All	Female Sockets Receptacle	Gold	Right Angle Through Hole	96	3
TE Connectivity AMP Connectors 4-1393659-5	Glass Filled PBT Polybutylene Terephthalate Polyester	125 °C	-55 °C	UL94 V-0	R	0.1 in	2	Solder	All	Male Pins Plug	Gold Gold-Palladium	Through Hole	96	3
TE Connectivity AMP Connectors 5650461-4	Glass Filled Polymer Thermoplastic	125 °C	-55 °C	UL94 V-0	R	0.1 in	2	Solder	All	Female Sockets Receptacle	Gold	Right Angle Through Hole	96	3
