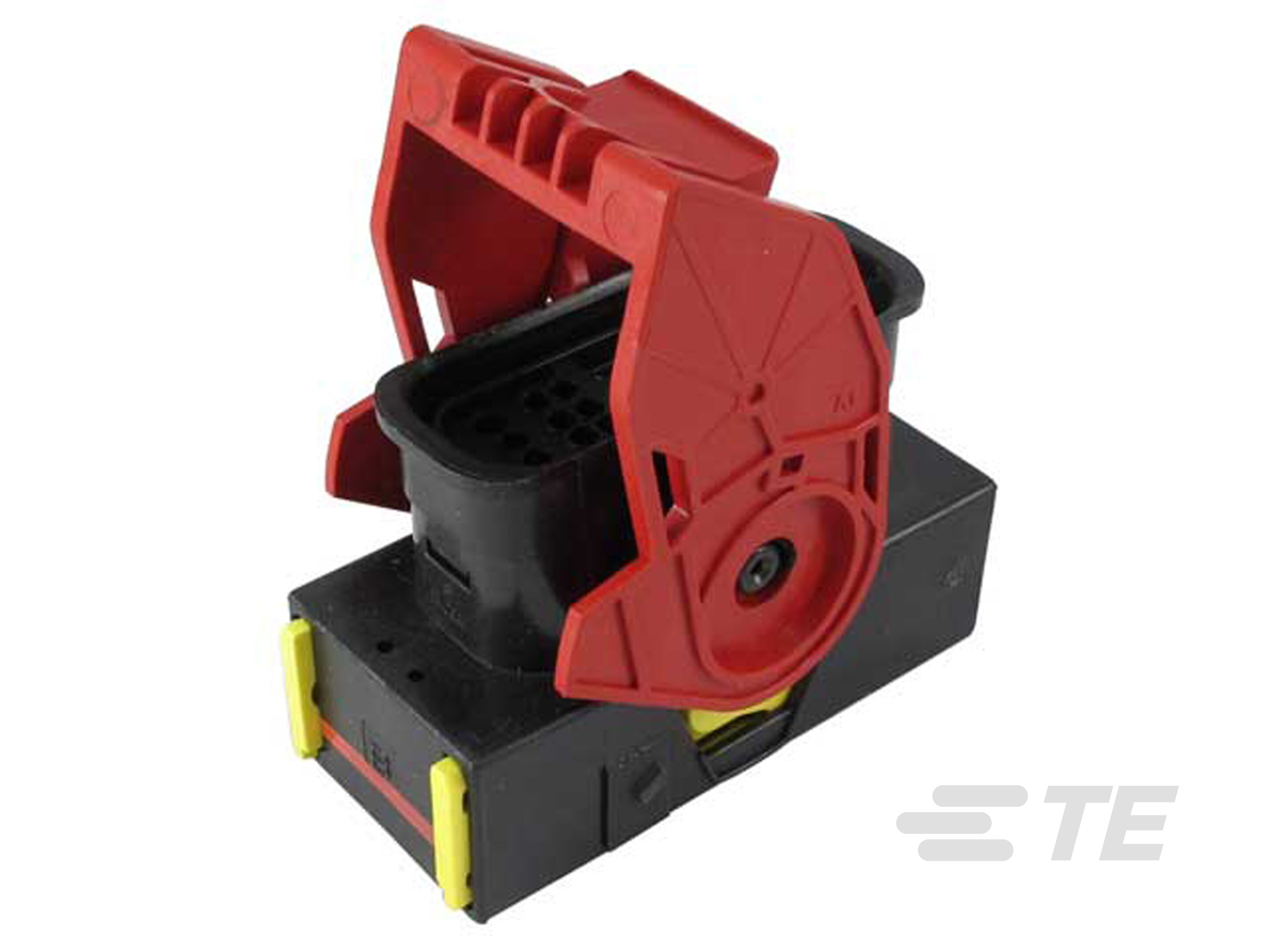

Specification	SRK06-MDB-32A-001

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed, Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	32
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

STRIKE Series

Part	Voltage Rating	Number of Rows	Contact Finish - Mating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Connector Type	Shrouding	Insulation Material	Contact Finish - Post	Features	Contact Length - Post	Contact Shape	Contact Type	Number of Positions Loaded	Number of Positions	Termination	Mounting Type	Style	Insulation Color	Insulation Height	Color	Contact Termination	Pitch	Row Spacing	Note
TE Connectivity AMP Connectors SRK13-MDA-32A-001
TE Connectivity AMP Connectors SRK15-MDA-32A-001	48 V	4	Tin	13 A	125 °C	-55 °C	Push-Pull	Header	Shrouded - 4 Wall	Plastic	Tin	Mounting Flange	0.16 in	Circular	Male Pin	All	32	Solder	Panel Mount Through Hole	Board Cable/Wire	Black	1.61 in
TE Connectivity AMP Connectors SRK15-MDF-32A-001	48 V	4	Tin	13 A	125 °C	-55 °C	Push-Pull	Header	Shrouded - 4 Wall	Plastic	Tin	Mounting Flange	0.16 in	Circular	Male Pin	All	32	Solder	Panel Mount Through Hole	Board Cable/Wire	Black	1.61 in
TE Connectivity AMP Connectors SRK02-FLA-64A-001		8			125 °C	-55 °C	Push-Pull	Receptacle		Polybutylene Terephthalate (PBT)		Sealed			Male Pin		64		Free Hanging (In-Line)				Black	Crimp	0.134 in
TE Connectivity AMP Connectors SRK15-MDC-32A-001	48 V	4	Tin	13 A	125 °C	-55 °C	Push-Pull	Header	Shrouded - 4 Wall	Plastic	Tin	Mounting Flange	0.16 in	Circular	Male Pin	All	32	Solder	Panel Mount Through Hole	Board Cable/Wire	Black	1.61 in
TE Connectivity AMP Connectors SRK06-MDF-32A-001		4			125 °C	-55 °C	Lever Lock	Receptacle		Polybutylene Terephthalate (PBT)		Sealed			Female Socket		32		Free Hanging (In-Line)				Black	Crimp	0.134 in	0.138 in
TE Connectivity AMP Connectors SRK06-MDA-32A-001					125 °C	-55 °C	Latch Holder	Plug		Glass Filled Polybutylene Terephthalate (PBT)		Sealed Terminal Position Lock (TPA)			Female Socket		32		Free Hanging (In-Line)				Black	Crimp			Contacts Not Included
TE Connectivity AMP Connectors SRK02-MDB-32A-001					125 °C	-55 °C	Lever Lock	Receptacle		Glass Filled Polybutylene Terephthalate (PBT)		Sealed Terminal Position Lock (TPA)			Male Pin		32		Free Hanging (In-Line)				Black	Crimp			Contacts Not Included
TE Connectivity AMP Connectors SRK15-MDB-32A-001	48 V	4	Tin	13 A	125 °C	-55 °C	Push-Pull	Header	Shrouded - 4 Wall	Plastic	Tin	Mounting Flange	0.16 in	Circular	Male Pin	All	32	Solder	Panel Mount Through Hole	Board Cable/Wire	Black	1.61 in
TE Connectivity AMP Connectors SRK02-MDI-32A-001		4			125 °C	-55 °C	Push-Pull	Receptacle		Polybutylene Terephthalate (PBT)		Connector Position Assurance (CPA) Terminal Position Assurance (TPA)			Male Pin		32		Free Hanging (In-Line) Panel Mount				Black	Crimp	0.134 in
