ANT-DB1-WRT-MHF4-100
ActiveTE Connectivity AMP Connectors

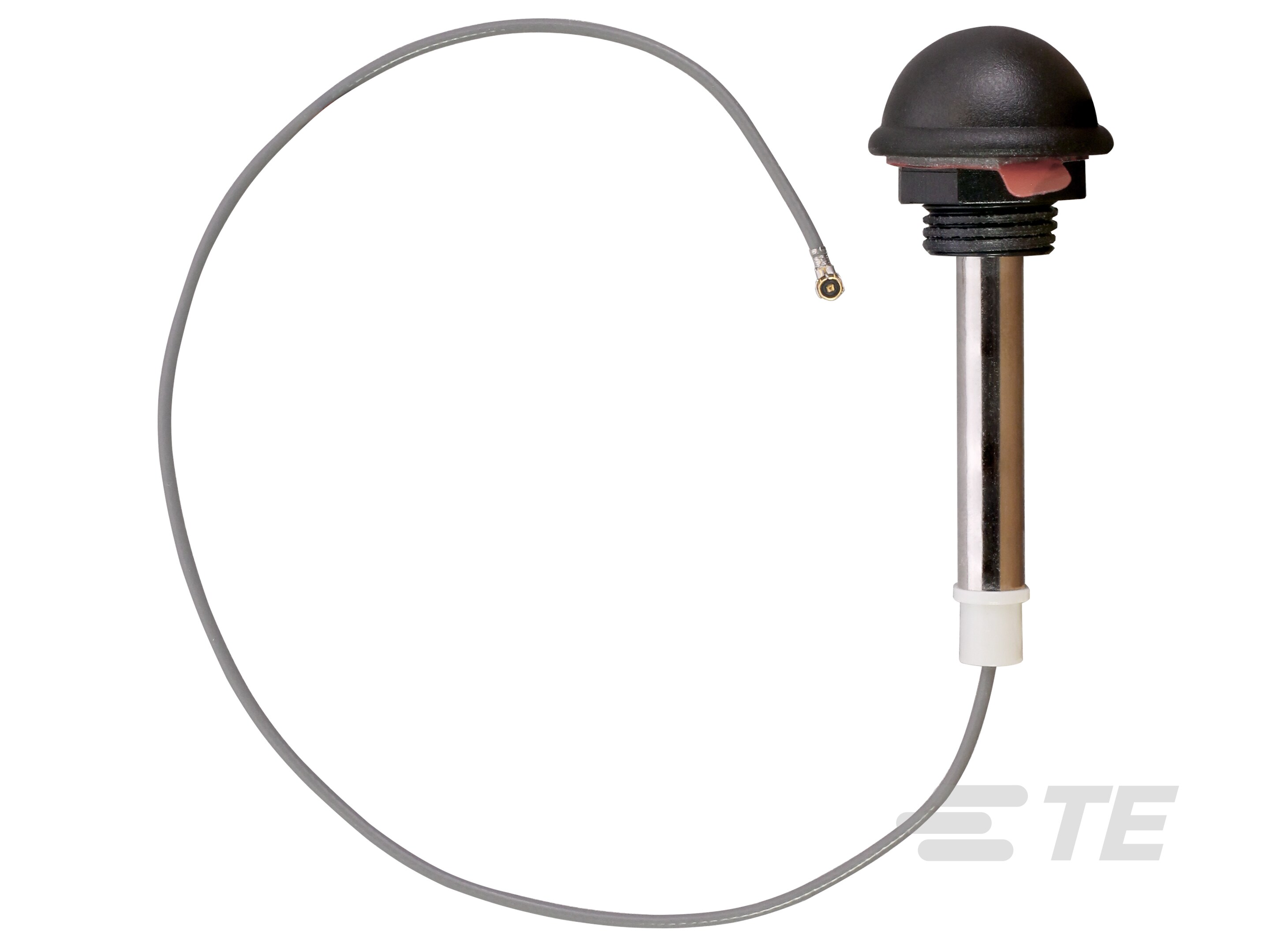

ANTENNA DOME WIFI6 2.4/5.8GHZ 1.13 MHF4
ANT-DB1-WRT-MHF4-100
ActiveTE Connectivity AMP Connectors
ANTENNA DOME WIFI6 2.4/5.8GHZ 1.13 MHF4
Description
General part information
ANT-DB1-WRT-MHF4-100
2.4425GHz, 5.5GHz, 6.525GHz Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ Dome RF Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz 3.2dBi, 6.8dBi, 7dBi MHF4 Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-DB1-WRT-MHF4-100 |
|---|---|
| Antenna Type | Dome |
| Applications | WLAN, Wi-Fi, Zigbee™, Bluetooth, ISM |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 5.5GHz, 6.525GHz, 2.4425GHz |
| Frequency (Center/Band) - 1 | 2.4425 GHz |
| Frequency (Center/Band) - 2 | 5.5 GHz |
| Frequency (Center/Band) - 3 | 6.525 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.485 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | 3.2 dBi, 6.8 dBi, 7 dBi |
| Height (Max) | 0.394 in |
| Mounting Type | Panel Mount |
| Number of Bands | 3 |
| Power - Max | 5 VA |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination | MHF4 |
| VSWR | 4, 1.9, 3.7 |
