LMLP0505M100CTAR
ActiveKYOCERA AVX
FIXED IND 10UH 940MA 480MOHM SMD
LMLP0505M100CTAR
ActiveKYOCERA AVX
FIXED IND 10UH 940MA 480MOHM SMD
Description
General part information

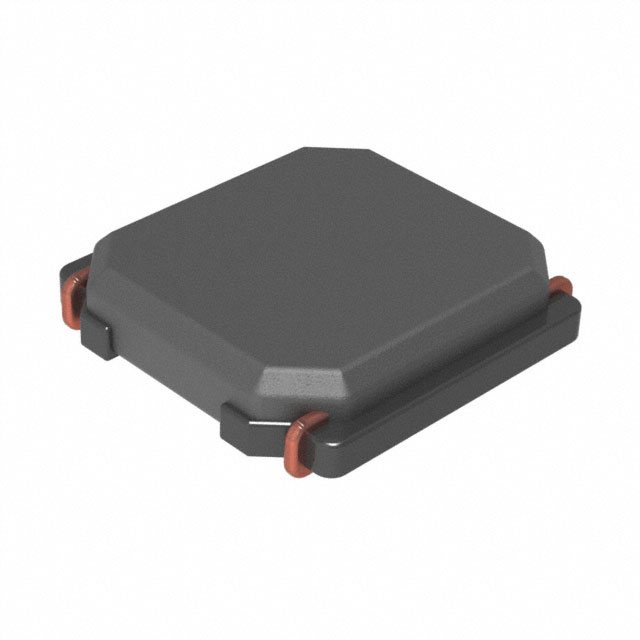

LMLP0505M100CTAR
10 µH Shielded Inductor 940 mA 480mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMLP0505M100CTAR |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 940 mA |
| DC Resistance (DCR) | 480 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 20 % |
