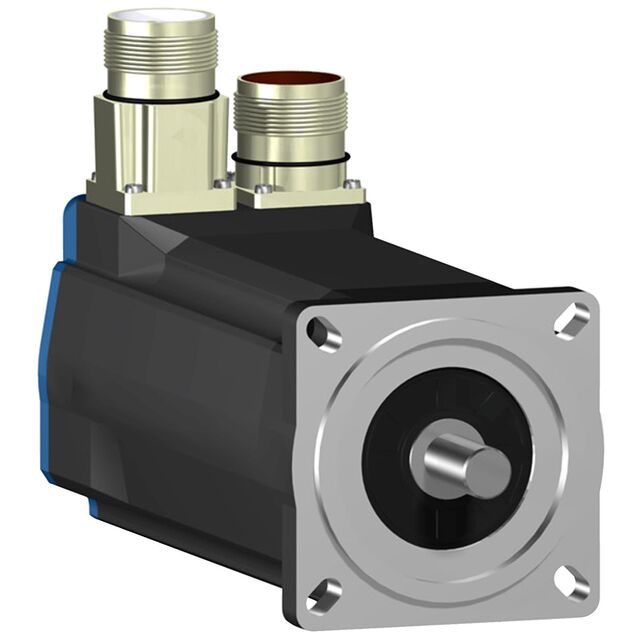

BSH0702P31A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 70 IP65 KEYED INC NOBRK ST
BSH0702P31A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 70 IP65 KEYED INC NOBRK ST
Description
General part information
BSH0702P31A1A
AC Motor Servomotor 8000 RPM 1.3kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH0702P31A1A |
|---|---|
| Diameter - Shaft | 0.43 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 0.91 in |
| Mounting Hole Spacing | 2.36 in |
| Power - Rated | 1300 W |
| RPM | 8000 RPM |
| Size / Dimension Length | 2.76 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 2.76 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 1900 mNm |
| Torque - Rated (oz-in) | 269.1 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
