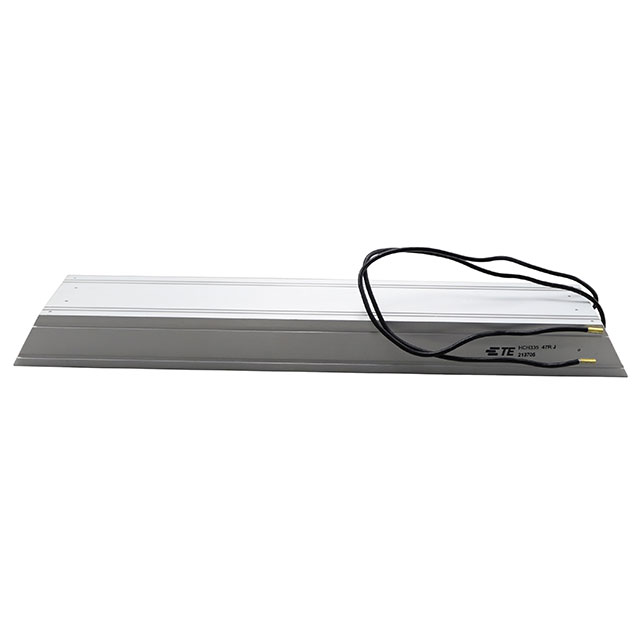

HCH335J47RJ

HCH335J47RJ

Active
TE Connectivity AMP Connectors

HCH335 500W 47R 5% LEAD

Find alt
HCH335J47RJ

HCH335J47RJ

Active
TE Connectivity AMP Connectors

HCH335 500W 47R 5% LEAD

Find alt

Description

General part information

CGS HCH Series

47 ohm Chassis Mount Resistor, 500 W, Wire Wound, 2 Terminations, ±200 ppm/°C, .05 %, Flying Leads, Loose Piece - Box, 31 mm [1.22 in] Height, CGS HCH

Technical Specifications

Parameters and characteristics for this part

SpecificationHCH335J47RJ
CoatingAluminum
CompositionWirewound
FeaturesPulse Withstanding, IP54
Height - Seated (Max)1.26 in
Housing TypeAluminum
Lead StyleWire Leads
Mounting FeatureFlanges
Operating Temperature375 °C
Package / CaseRectangular Case
Power (Watts)500 W
Resistance47 Ohms
Size / Dimension Length13.189 in
Size / Dimension Width2.362 in
Temperature Coefficient200 ppm/°C
Tolerance5 %
