634-026-263-540

Active

EDAC Inc.

634 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

634-026-263-540

Active

EDAC Inc.

634 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	634-026-263-540

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

634-026 Series

Part	Shell Material, Finish	Dielectric Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Material	Number of Positions	Connector Type	Number of Rows	Current Rating (Amps)	Backset Spacing	Backset Spacing	Termination	Connector Style	Material Flammability Rating	Features	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Contact Finish Thickness
EDAC Inc. 634-026-663-051	Nickel Plated Steel	Polyester Thermoplastic	Signal	85 °C	-55 °C	Housing/Shell (Unthreaded)	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Mounting Brackets Shielded	2	(DA A) High Density	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Gold
EDAC Inc. 634-026-263-040	Nickel Plated Steel	Polyester Thermoplastic	Signal	85 °C	-55 °C	4-40	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Board Lock Mounting Brackets Shielded	2	(DA A) High Density			Board Edge Right Angle Through Hole	Gold	Flash
EDAC Inc. 634-026-263-532	Nickel Plated Steel	Polyester Thermoplastic	Signal	125 °C	-55 °C	Housing/Shell (4-40)	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Board Lock Mounting Brackets Shielded	2	(DA A) High Density			Board Edge Right Angle Through Hole	Gold	Flash
EDAC Inc. 634-026-263-540	Nickel Plated Steel	Polyester Thermoplastic	Signal	125 °C	-55 °C	4-40	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Board Lock Mounting Brackets Shielded	2	(DA A) High Density			Board Edge Right Angle Through Hole	Gold	Flash
EDAC Inc. 634-026-363-552	Nickel Plated Steel	Polyester Thermoplastic	Signal	125 °C	-55 °C	Housing/Shell (4-40)	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Board Lock Mounting Brackets Shielded	2	(DA A) High Density	0.38 µm	15 µin	Board Edge Right Angle Through Hole	Gold
EDAC Inc. 634-026-363-530	Nickel Plated Steel	Polyester Thermoplastic	Signal	125 °C	-55 °C	4-40	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Board Lock Mounting Brackets Shielded	2	(DA A) High Density	0.38 µm	15 µin	Board Edge Right Angle Through Hole	Gold
EDAC Inc. 634-026-363-030	Nickel Plated Steel	Polyester Thermoplastic	Signal	85 °C	-55 °C	4-40	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Board Lock Mounting Brackets Shielded	2	(DA A) High Density	0.38 µm	15 µin	Board Edge Right Angle Through Hole	Gold
EDAC Inc. 634-026-363-535	Nickel Plated Steel	Polyester Thermoplastic	Signal	125 °C	-55 °C	Housing/Shell (M3)	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Board Lock Mounting Brackets Shielded	2	(DA A) High Density	0.38 µm	15 µin	Board Edge Right Angle Through Hole	Gold
EDAC Inc. 634-026-363-053	Nickel Plated Steel	Polyester Thermoplastic	Signal	85 °C	-55 °C	Female Screwlock (4-40) Mating Side	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Mounting Brackets Shielded	2	(DA A) High Density	0.38 µm	15 µin	Board Edge Right Angle Through Hole	Gold
EDAC Inc. 634-026-663-050	Nickel Plated Steel	Polyester Thermoplastic	Signal	85 °C	-55 °C	4-40	Copper Alloy	26	Receptacle Female Sockets	3	3 A	8.89 mm	0.35 in	Solder	D-Sub High Density	UL94 V-0	Mounting Brackets Shielded	2	(DA A) High Density	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 4.70

Description

General part information

634-026 Series

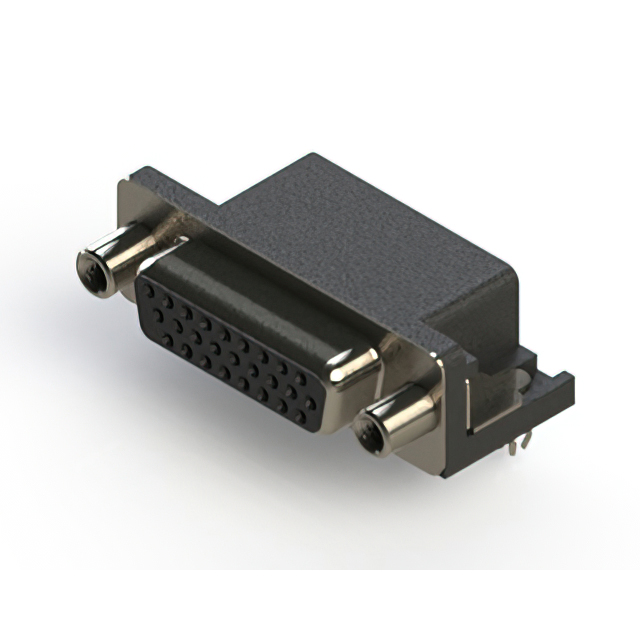

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
