MV18-8R/LK

Active

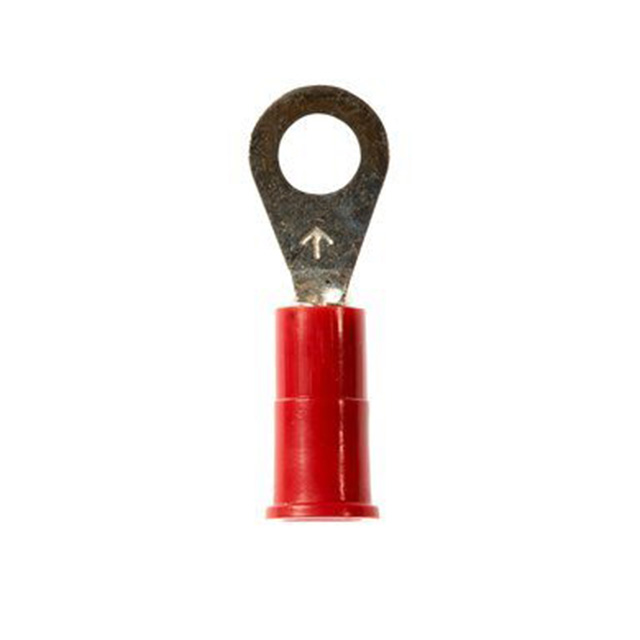

CONN RING CIRC 18-22AWG #8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MV18-8R/LK

Active

CONN RING CIRC 18-22AWG #8 CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.80
		10	$ 0.68
		25	$ 0.65
		50	$ 0.64
		100	$ 0.61
		250	$ 0.55
		500	$ 0.50
		1000	$ 0.44
		3000	$ 0.40

Description

General part information

MV18 Series

Ring Terminal Connector 8 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MV18-8R/LK	MV18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall	23.62 mm	22.86 - 28.7 mm
Length - Overall	-	20.32 - 22.35 mm
Length - Overall	-	0.9 in
Length - Overall [x]	0.93 in	0.8 - 1.13 in
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	0.45 in
Length - Termination	-	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	8 Stud	8 Stud, 3/8 Stud
Stud/Tab Size	-	0.25 - 10 Stud
Terminal Type	Circular	Snap, Spring, Circular, Standard
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges	7.87 mm	7.87 - 8.64 mm
Width - Outer Edges	-	6.35 - 14.22 mm
Width - Outer Edges	-	0.34 in
Width - Outer Edges [y]	0.31 in	0.25 - 0.56 "
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MV18 Series

FORK / SPADE TONGUE TERMINAL, SCOTCHLOK SERIES, 22 AWG, 18 AWG, M3.5, #6

Part	Insulation Diameter	Insulation Diameter [diameter]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Material	Color	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Features	Contact Finish	Termination	Insulation	Mounting Type	Terminal Type	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Termination [x]	Length - Termination [x]	Thickness	Thickness	Stud/Tab Size	Length - Overall	Width - Outer Edges	Width - Outer Edges	Length - Overall	Length - Ring Center to Termination	Length - Ring Center to Termination
3M MV18-6FLX	3.68 mm	0.145 "	0.25 in	6.35 mm	Copper, ETP	Red	6 Stud	0.88 in	22.35 mm	Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Snap, Spring	Vinyl	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.45 in	11.43 mm
3M MV18-6R/SK	3.68 mm	0.145 "			Copper, ETP	Red	6 Stud	0.8 in	20.32 mm	Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Circular	Vinyl	22 AWG	17.5 AWG	0.25 "	6.35 mm			0.03 in	0.76 mm
3M MV18-8FBK	3.68 mm	0.145 "	0.25 in	6.35 mm	Copper, ETP	Red		0.85 "	21.59 mm	Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Standard	Vinyl	22 AWG	17.5 AWG			0.45 in	11.43 mm			8 Stud
3M MV18-4FLX-BOTTLE	3.68 mm	0.145 "	0.25 in	6.35 mm	Copper, ETP	Red	4 Stud	0.88 in	22.35 mm	Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Snap, Spring	Vinyl	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.45 in	11.43 mm
3M MV18-10R/LX-BOTTLE	3.68 mm	0.145 "			Copper, ETP	Red	10 Stud	0.93 in		Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Circular	Vinyl	22 AWG	17.5 AWG	0.31 in				0.03 in	0.76 mm		23.62 mm	7.87 mm
3M MV18-4R/SX-BOTTLE	3.68 mm	0.145 "			Copper, ETP	Red	4 Stud	0.8 in	20.32 mm	Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Circular	Vinyl	22 AWG	17.5 AWG	0.25 "	6.35 mm			0.03 in	0.76 mm
3M MV18-10R/LK	3.68 mm	0.145 "			Copper, ETP	Red	10 Stud	0.93 in		Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Circular	Vinyl	22 AWG	17.5 AWG	0.31 in				0.03 in	0.76 mm		23.62 mm	7.87 mm
3M MV18-14R/SX-BOTTLE	3.68 mm	0.145 "			Copper, ETP	Red	0.25 Stud			Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Circular	Vinyl	22 AWG	17.5 AWG	0.47 in	11.94 mm			0.03 in	0.76 mm
3M MV18-6R/SX-BOTTLE	3.68 mm	0.145 "				Red	6 Stud	0.8 in	20.32 mm	Brazed Seam		Crimp	Insulated	Free Hanging (In-Line)	Circular	Vinyl	22 AWG	17.5 AWG	0.25 "	6.35 mm			0.03 in	0.76 mm
3M MV18-8FK	3.68 mm	0.145 "			Copper, ETP	Red				Brazed Seam	Tin	Crimp	Insulated	Free Hanging (In-Line)	Standard	Vinyl	22 AWG	17.5 AWG			0.45 in	11.43 mm			8 Stud	22.86 mm	8.64 mm	0.34 in	0.9 in	0.29 in	7.37 mm
