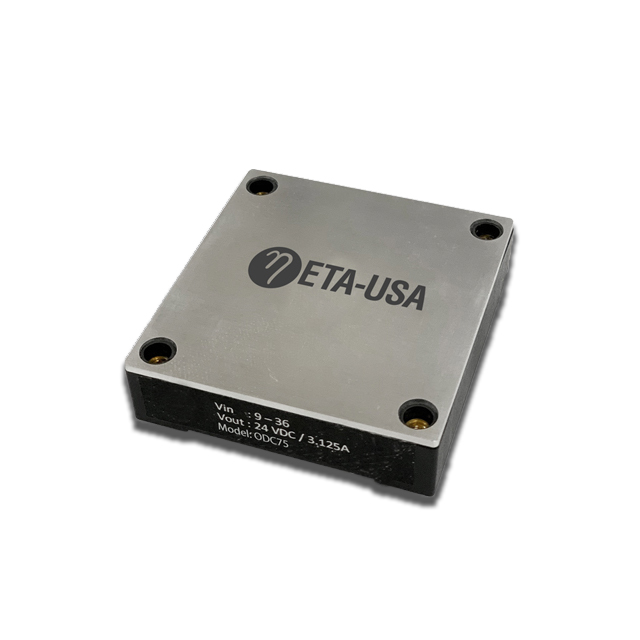

ODC75-05SC110

Active

ETA-USA

DC-DC SMD THROUGH-HOLE ENCAPSUL

Search across all available documentation for this part.

Active

ETA-USA

DC-DC SMD THROUGH-HOLE ENCAPSUL

Technical Specifications

Parameters and characteristics for this part

DC-DC SMD THROUGH-HOLE ENCAPSUL

Part	Mounting Type	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Features	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Type	Applications	Voltage - Output 1	Number of Outputs
ETA-USA ODC75-05SC110	Through Hole	75 W	15 A	40 V	-40 °C	70 °C	110 V	Half Brick	2250 VDC	Adjustable Output	Half Brick	2.4 in	2.28 in	61 mm	15 mm	0.59 in	57.9 mm	88 %	Isolated Module	Railway	5 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 15A 40V - 110V Input
