CBJR70

Active

Cinch Connectivity Solutions Trompeter

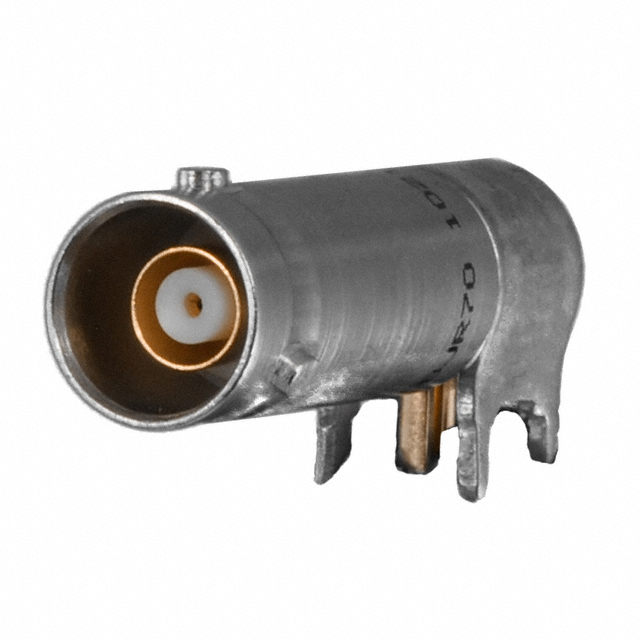

CONN TRB JACK R/A PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK R/A PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Through Hole, Right Angle Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CBJR70	CBJR Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Twinaxial/Triaxial, TRB	BNC, TTM, Twinaxial/Triaxial, TRS, TRB
Connector Type	Female Socket (Concentric), Jack	Female Socket, Jack, Female Socket (Concentric)
Contact Termination	Solder	Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Board Guide, Three Lug
Frequency - Max [Max]	500 MHz	4 - 500 GHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Impedance	-	50 Ohms
Mating Cycles	500	500
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 - 200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	400 V	400 - 500 V

CONN BNC JACK R/A 50OHM PCB

Part	Frequency - Max [Max]	Mounting Type	Features	Connector Style	Connector Type	Body Finish	Housing Color	Impedance	Fastening Type	Body Material	Number of Ports	Contact Termination	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shield Termination	Impedance	Center Contact Material	Mating Cycles	Dielectric Material
Cinch Connectivity Solutions Trompeter CBJR20	4 GHz	Through Hole, Right Angle	Board Guide	BNC	Female Socket, Jack	Nickel	Silver	50 Ohms	Bayonet Lock	Brass	1	Solder	Gold	-65 ░C	165 °C	500 V	Solder
Cinch Connectivity Solutions Trompeter CBJR3157	500 MHz	Through Hole, Right Angle		TTM, Twinaxial/Triaxial	Female Socket (Concentric), Jack	Nickel	Silver			Brass	1	Solder	Gold	-65 ░C	200 °C	400 V	Solder	Non-Constant	Beryllium Copper
Cinch Connectivity Solutions Trompeter CBJR157	500 MHz	Through Hole, Right Angle	Three Lug	TRS, Twinaxial/Triaxial	Female Socket, Jack	Nickel	Silver		Bayonet Lock	Brass	1	Solder	Gold	-65 ░C	200 °C	400 V	Solder	Non-Constant	Beryllium Copper	500
Cinch Connectivity Solutions Trompeter CBJR20A	4 GHz	Through Hole, Right Angle		BNC	Female Socket, Jack	Nickel	Silver	50 Ohms	Bayonet Lock	Brass	1	Solder	Gold	-65 ░C	165 °C	500 V	Solder				Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter CBJR70	500 MHz	Through Hole, Right Angle	Three Lug	TRB, Twinaxial/Triaxial	Female Socket (Concentric), Jack	Nickel	Silver		Bayonet Lock	Brass	1	Solder	Gold	-65 ░C	165 °C	400 V	Solder	Non-Constant	Beryllium Copper	500
