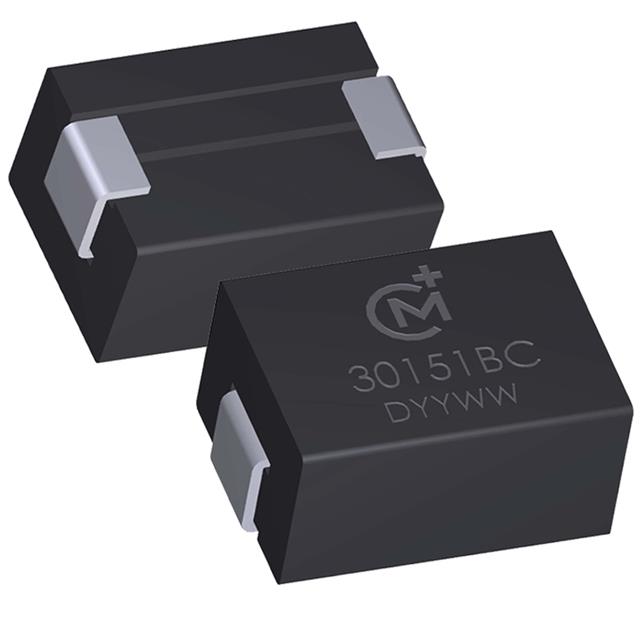

30221BC
ActiveMurata Power Solutions Inc.
FIXED IND 200NH 29A 0.42MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
30221BC
ActiveMurata Power Solutions Inc.
FIXED IND 200NH 29A 0.42MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 30221BC | 30 Series |
|---|---|---|
| - | - | |
| Current - Saturation (Isat) | 29 A | 22 - 71 A |
| Current Rating (Amps) | 29 A | 22 - 37 A |
| DC Resistance (DCR) [Max] | 0.42 mOhm | 0.35 - 0.42 mOhm |
| Height - Seated (Max) [Max] | 4.96 mm | 4.96 mm |
| Height - Seated (Max) [Max] [z] | 0.195 in | 0.195 in |
| Inductance | - | 80 - 191 nH |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 130 °C | 130 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 2-SMD | 2-SMD |
| Shielding | Shielded | Shielded |
| Size / Dimension | - | 7 mm |
| Size / Dimension [x] | 0.402 in | 0.276 - 0.402 " |
| Size / Dimension [x] | 10.2 mm | 7 - 10.2 mm |
| Size / Dimension [y] | 0.276 in | 0.276 in |
| Size / Dimension [y] | 7 mm | 7 mm |
| Tolerance | 20 % | 20 % |
| Type | Wirewound | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
30 Series
FIXED IND 80NH 37A 0.35 MOHM SMD
| Part | Current - Saturation (Isat) | Shielding | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Current Rating (Amps) | Type | Inductance Frequency - Test | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 30800AC | 47 A | Shielded | 2-SMD | 7 mm | 0.276 in | 0.276 " | 7 mm | 20 % | Surface Mount | 0.195 in | 4.96 mm | 37 A | Wirewound | 1 MHz | 80 nH | -40 °C | 130 °C | 0.35 mOhm | |
Murata Power Solutions Inc. 30800AC | |||||||||||||||||||
Murata Power Solutions Inc. 30121BC | |||||||||||||||||||
Murata Power Solutions Inc. 30151BC | |||||||||||||||||||
Murata Power Solutions Inc. 30201AC | 22 A | Shielded | 2-SMD | 7 mm | 0.276 in | 0.276 " | 7 mm | 20 % | Surface Mount | 0.195 in | 4.96 mm | 22 A | Wirewound | 1 MHz | 191 nH | -40 °C | 130 °C | 0.35 mOhm | |
Murata Power Solutions Inc. 30850BC | 71 A | Shielded | 2-SMD | 0.276 in | 0.402 in | 10.2 mm | 20 % | Surface Mount | 0.195 in | 4.96 mm | 37 A | Wirewound | 1 MHz | -40 °C | 130 °C | 0.42 mOhm | 7 mm | ||
Murata Power Solutions Inc. 30151AC | |||||||||||||||||||
Murata Power Solutions Inc. 30121BC | 50 A | Shielded | 2-SMD | 0.276 in | 0.402 in | 10.2 mm | 20 % | Surface Mount | 0.195 in | 4.96 mm | 37 A | Wirewound | 1 MHz | 114 nH | -40 °C | 130 °C | 0.42 mOhm | 7 mm | |
Murata Power Solutions Inc. 30221BC | 29 A | Shielded | 2-SMD | 0.276 in | 0.402 in | 10.2 mm | 20 % | Surface Mount | 0.195 in | 4.96 mm | 29 A | Wirewound | 1 MHz | -40 °C | 130 °C | 0.42 mOhm | 7 mm | ||
Murata Power Solutions Inc. 30101BC | 58 A | Shielded | 2-SMD | 0.276 in | 0.402 in | 10.2 mm | 20 % | Surface Mount | 0.195 in | 4.96 mm | 37 A | Wirewound | 1 MHz | 100 nH | -40 °C | 130 °C | 0.42 mOhm | 7 mm |
Description
General part information
30 Series
200 nH Shielded Wirewound Inductor 29 A 0.42mOhm Max 2-SMD
