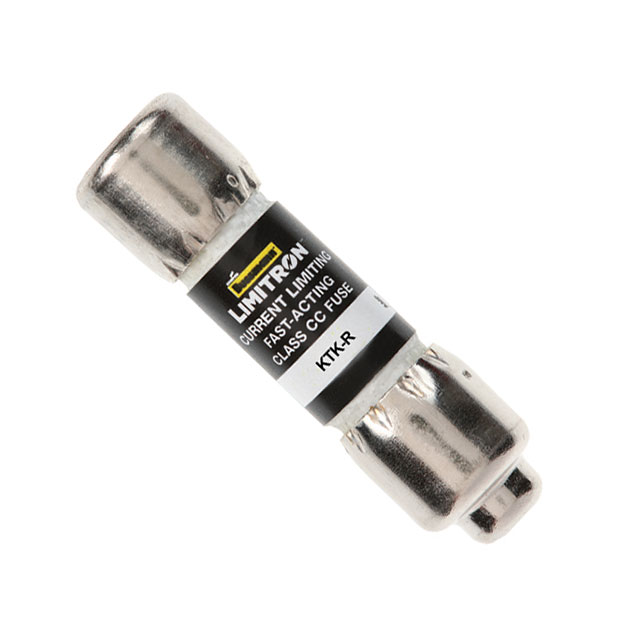

KTK-R-3-1/2
ActiveEaton - Electronics Division
FUSE CARTRIDGE 3.5A 600VAC 5AG
KTK-R-3-1/2
ActiveEaton - Electronics Division
FUSE CARTRIDGE 3.5A 600VAC 5AG
Description
General part information
KTK-R-3-1/2
3.5A 600 VAC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | KTK-R-3-1/2 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity | 200 kA |
| Class | CC |
| Current Rating | 3.5 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.5 in |
| Voltage Rating - AC | 600 VAC |
