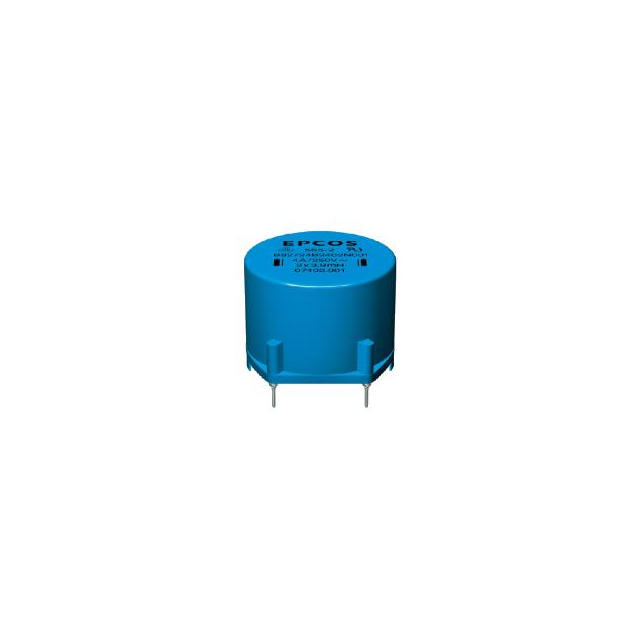

B82724B2402N030
ActiveEPCOS - TDK Electronics
CMC 7MH 4A 2LN TH
B82724B2402N030
ActiveEPCOS - TDK Electronics
CMC 7MH 4A 2LN TH
Description
General part information
B82724B2402N030
7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 65mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82724B2402N030 |
|---|---|
| Approval Agency | VDE, UR, ENEC |
| Current Rating (Max) | 4 A |
| DC Resistance (DCR) (Max) | 65 mOhm |
| DC Resistance (DCR) (Typ) | 65 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.984 " |
| Inductance | 7 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.323 in |
| Size / Dimension Width | 1.283 in |
| Voltage Rating - AC | 250 V |
