Specification	LFXP3C-3T100C

Mounting Type	Surface Mount
Number of I/O	62
Number of Logic Elements/Cells	3000
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	0 °C

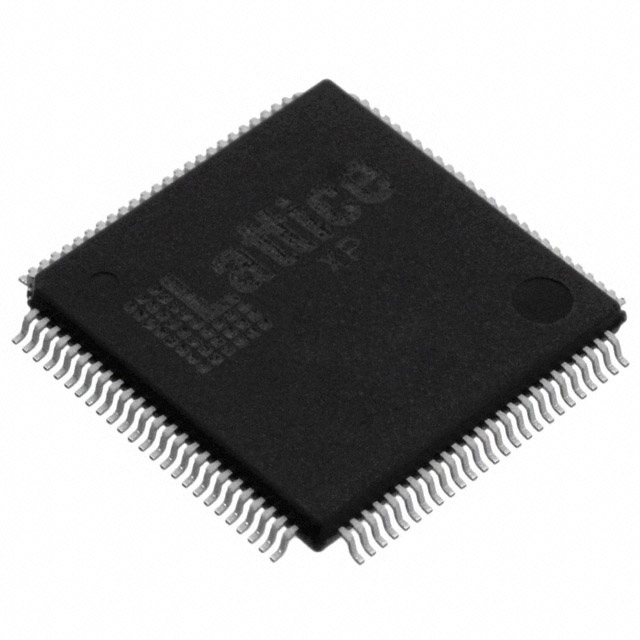

Package / Case	100-LQFP
Package Length	14 mm
Package Name	100-TQFP
Package Width	14 mm
Total RAM Bits	55296 bits
Voltage - Supply (Maximum)	3.465 V
Voltage - Supply (Minimum)	1.71 V

LFXP3 Series

Part	Mounting Type	Package / Case	Number of Logic Elements/Cells	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Total RAM Bits	Number of I/O	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Lattice Semiconductor Corporation LFXP3C-4TN100C	Surface Mount	100-LQFP	3000	85 °C	0 °C	14 mm	100-TQFP	14 mm	55296 bits	62	3.465 V	1.71 V
Lattice Semiconductor Corporation LFXP3C-3T100I	Surface Mount	100-LQFP	3000	100 °C	-40 °C	14 mm	100-TQFP	14 mm	55296 bits	62	3.465 V	1.71 V
Lattice Semiconductor Corporation LFXP3C-5QN208C	Surface Mount	208-BFQFP	3000	85 °C	0 °C	28 mm	208-PQFP	28 mm	55296 bits	136	3.465 V	1.71 V
Lattice Semiconductor Corporation LFXP3C-3T144C	Surface Mount	144-LQFP	3000	85 °C	0 °C	20 mm	144-TQFP	20 mm	55296 bits	100	3.465 V	1.71 V
Lattice Semiconductor Corporation LFXP3E-4QN208C	Surface Mount	208-BFQFP	3000	85 °C	0 °C	28 mm	208-PQFP	28 mm	55296 bits	136	1.26 V	1.14 V
Lattice Semiconductor Corporation LFXP3E-4TN144I	Surface Mount	144-LQFP	3000	100 °C	-40 °C	20 mm	144-TQFP	20 mm	55296 bits	100	1.26 V	1.14 V
Lattice Semiconductor Corporation LFXP3E-4Q208I	Surface Mount	208-BFQFP	3000	100 °C	-40 °C	28 mm	208-PQFP	28 mm	55296 bits	136	1.26 V	1.14 V
Lattice Semiconductor Corporation LFXP3C-4T144I	Surface Mount	144-LQFP	3000	100 °C	-40 °C	20 mm	144-TQFP	20 mm	55296 bits	100	3.465 V	1.71 V
Lattice Semiconductor Corporation LFXP3E-5TN100C	Surface Mount	100-LQFP	3000	85 °C	0 °C	14 mm	100-TQFP	14 mm	55296 bits	62	1.26 V	1.14 V
Lattice Semiconductor Corporation LFXP3C-3TN144I	Surface Mount	144-LQFP	3000	100 °C	-40 °C	20 mm	144-TQFP	20 mm	55296 bits	100	3.465 V	1.71 V
