Description
General part information

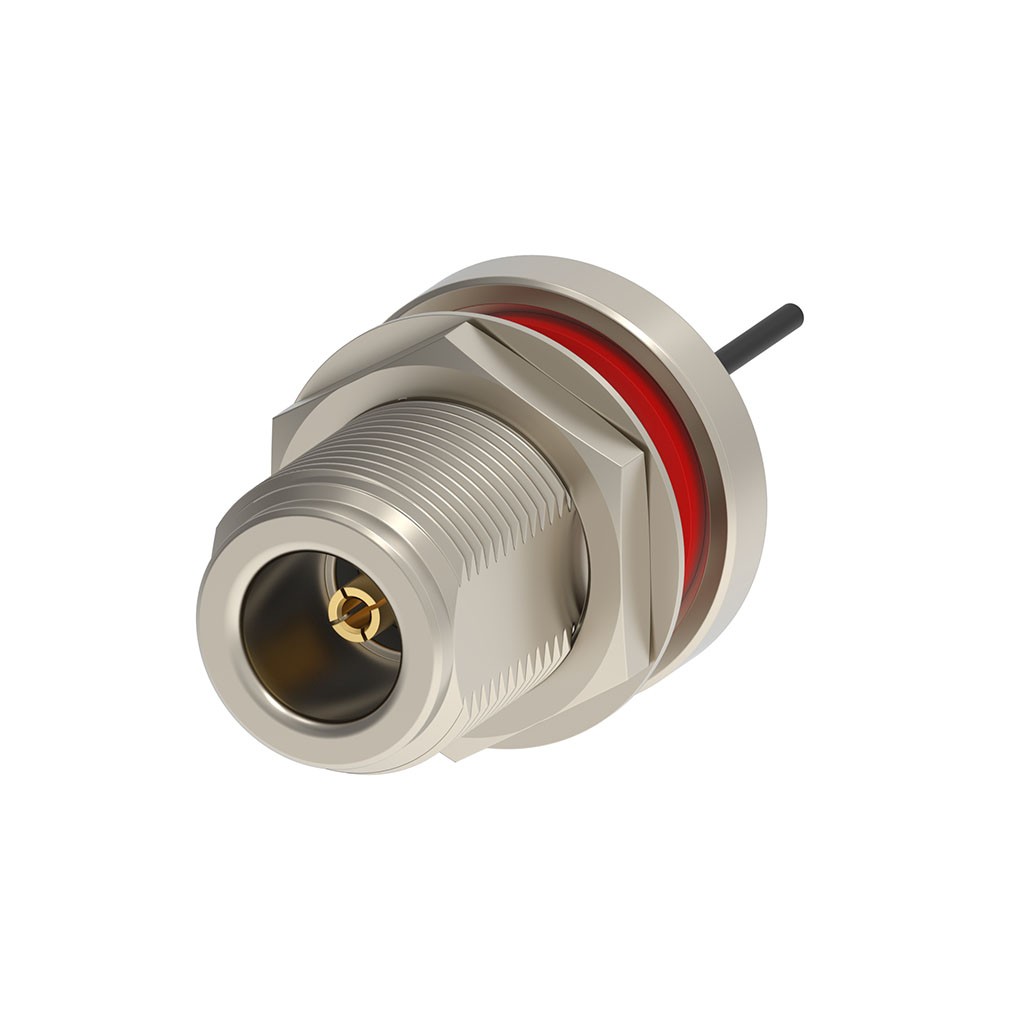

0731000780
N JACK BULKHEAD FOR 1.32MM CABLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 0731000780 |
|---|---|
| Cable Group | Coaxial Cable, 1.37mm Coaxial Cable |
| Cable Group Size | 1.37 mm, 1.32 mm |
| Center Contact Material | Phosphor Bronze |
| Connector Style | N Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
