14910F0GJSX10253KA
ActiveVishay Dale

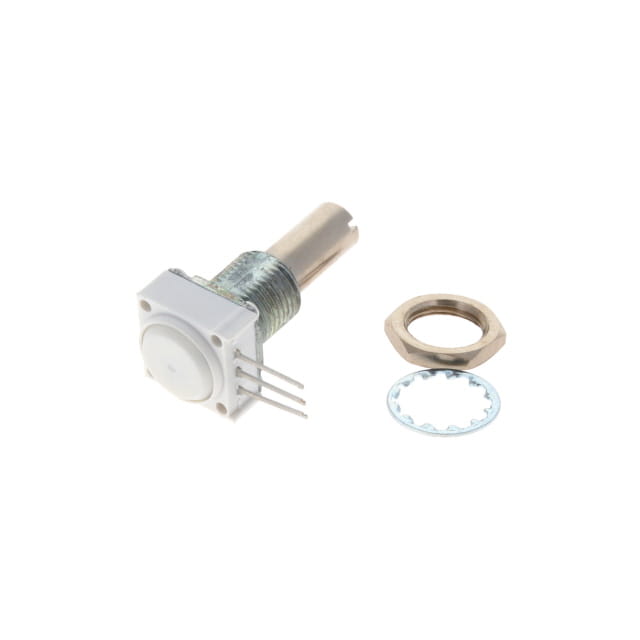

ROTARY POTENTIOMETER, CERMET, 25 KOHM, 1 TURNS, LINEAR, 1 W, ± 10%, 149 SERIES
14910F0GJSX10253KA
ActiveVishay Dale
ROTARY POTENTIOMETER, CERMET, 25 KOHM, 1 TURNS, LINEAR, 1 W, ± 10%, 149 SERIES
Description
General part information
14910F0GJSX10253KA
25k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Cermet 1W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | 14910F0GJSX10253KA |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 1 W |
| Resistance | 25 kOhm |
| Resistive Material | Cermet |
| Rotation | 300 ° |
| Taper | Linear |
| Temperature Coefficient | 150 ppm/¯C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
