140000692

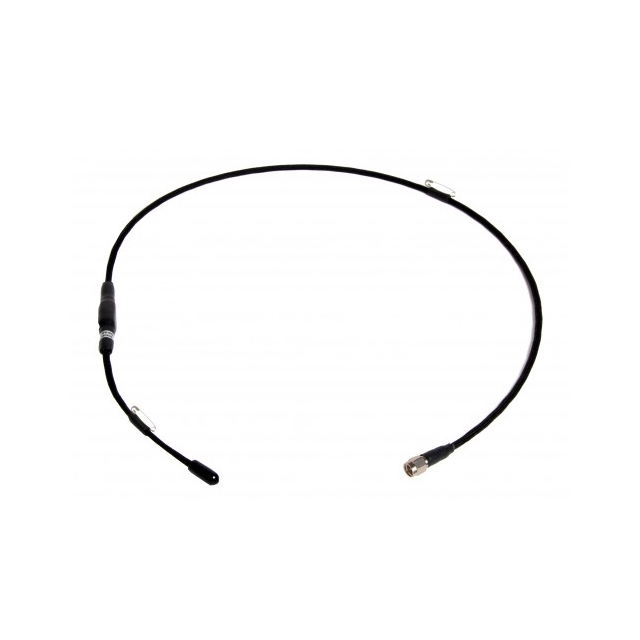

RF ANTENNA GPS Module SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 140000692 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Frequency (Band) | 1.575 GHz |
| Frequency (Center) | 810 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz, 1 GHz |
| Frequency Range (Max) | 860 MHz |
| Frequency Range (Min) | 760 MHz |
| Gain | 0 dBi |
| Height (Max) | 29.921 in |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Power - Max | 25 W |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
| VSWR | 2.5 |
