Description
General part information

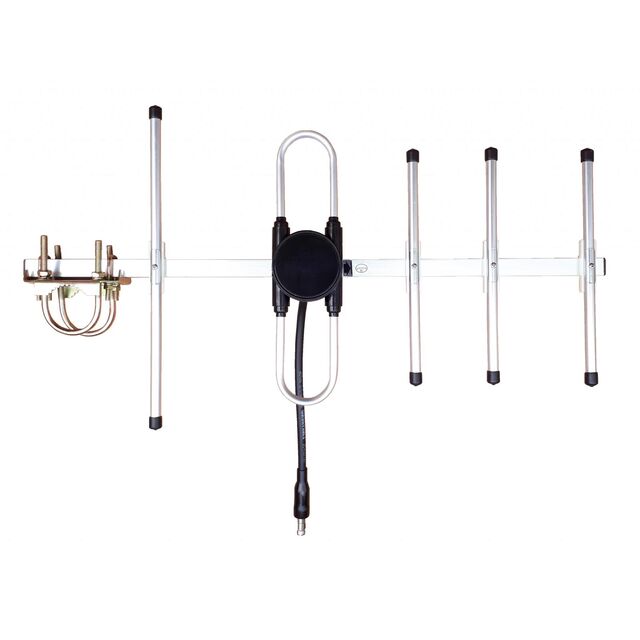

OSCAR44/0.3M/NTYPEF/S/S/17
RF ANTENNA ISM Yagi, 5-Element N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | OSCAR44/0.3M/NTYPEF/S/S/17 |
|---|---|
| Antenna Element Count | 5 elements |
| Antenna Type | Yagi |
| Applications | ISM |
| Frequency (Center/Band) | 450 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 480 MHz |
| Frequency Range (Min) | 400 MHz |
| Gain | 9 dBi |
| Height (Max) | 1.417 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
