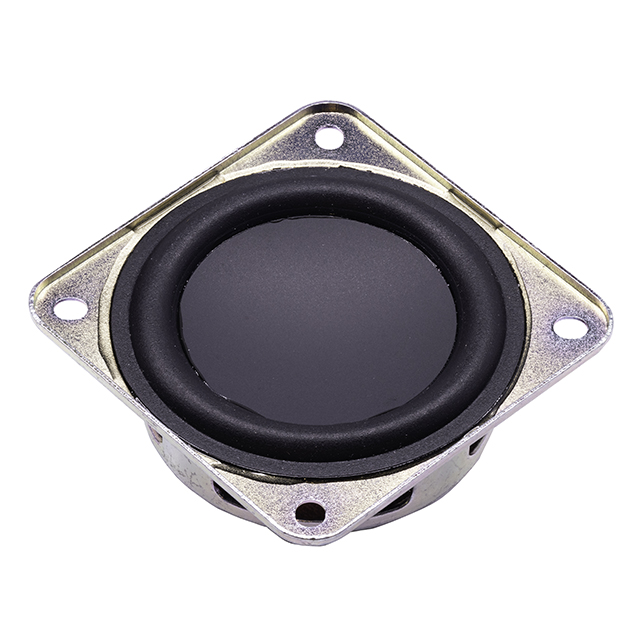

CDSM-4627-104
ActiveSame Sky (Formerly CUI Devices)
46.7MM, 10W, 4OHM, 180HZ
CDSM-4627-104
ActiveSame Sky (Formerly CUI Devices)
46.7MM, 10W, 4OHM, 180HZ
Description
General part information
CDSM-4627-104
4 Ohms General Purpose Speaker 10 W 144 Hz ~ 20 kHz Top Round, Square Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | CDSM-4627-104 |
|---|---|
| Distortion Rating | 5 % |
| Efficiency - dBA | 104 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 10 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 180 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 144 Hz |
| Height - Seated (Max) | 1.083 in |
| Impedance | 4 Ohms |
| Material - Cone | Polyurethane (PU), Paper |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 12 W |
| Power - Rated | 10 W |
| Shape | Round, Square Frame |
| Size / Dimension Length | 1.839 in |
| Size / Dimension Width | 1.839 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
