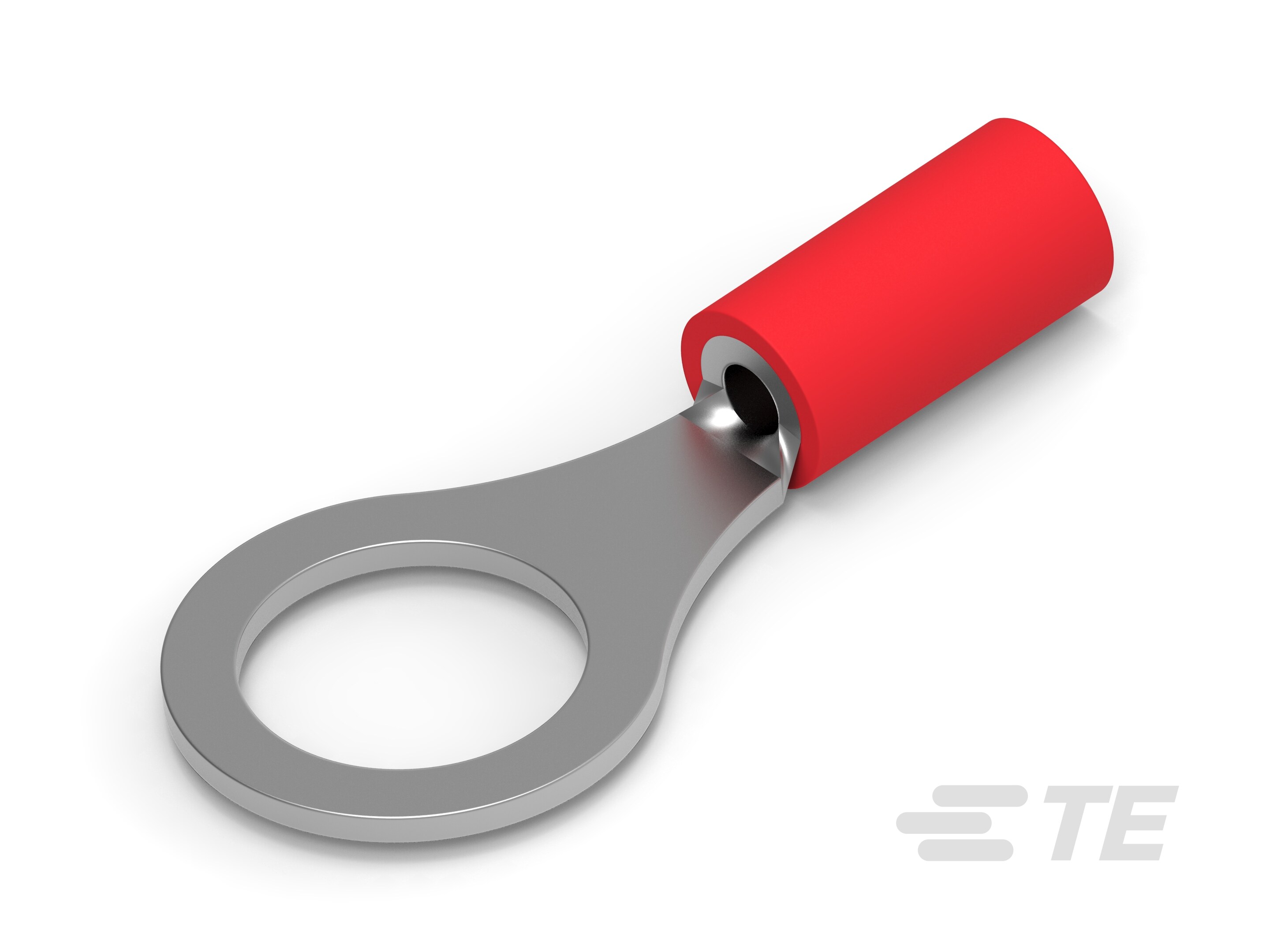

PG R 22-16 COMM 22-18 MIL 5/16-34151

34151

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL 16-22AWG COPPER RED 27.69MM TIN LOOSE

Find alt
PG R 22-16 COMM 22-18 MIL 5/16-34151

34151

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL 16-22AWG COPPER RED 27.69MM TIN LOOSE

Find alt

Description

General part information

34151

Closed Ring Tongue Terminal, 22 – 16 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification34151
ColorRed
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall1.09 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.3125 in
Stud/Tab Size16 Stud, 5 Stud
Stud/Tab Size (Type)Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.469 in
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)16 AWG
