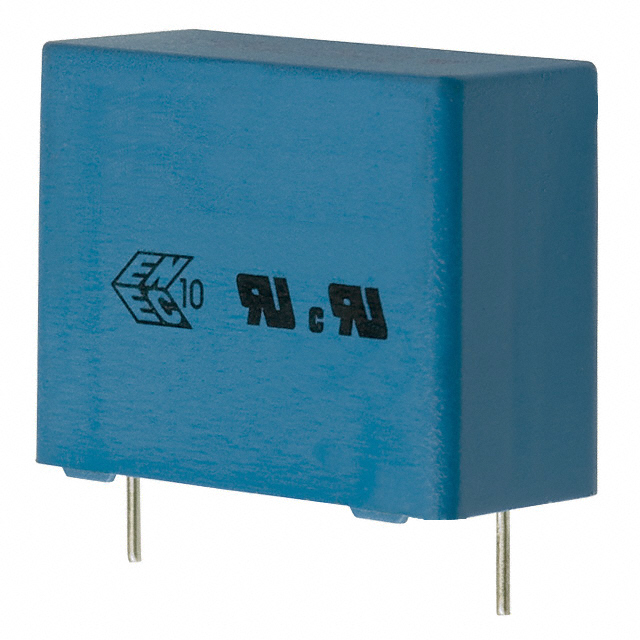

Specification	B32914A3474K189

Applications	RFI Suppression, EMI
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.827 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension Length	1.24 in
Size / Dimension Width	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	330 V
Voltage Rating - DC	760 V
