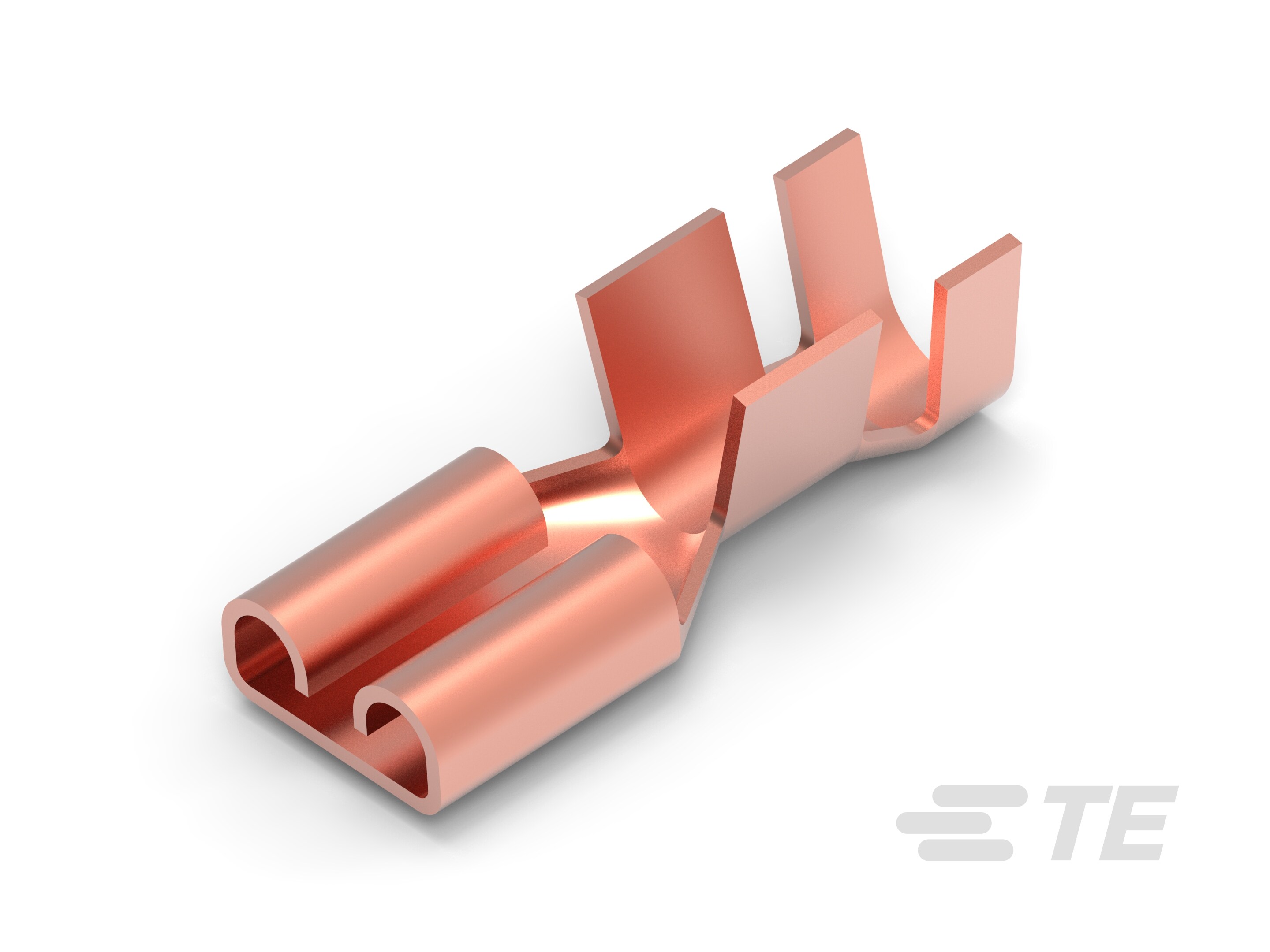

Specification	2-160301-9

Contact Material	Phosphor Bronze
Gender	Female
Insulation	Non-Insulated
Length - Overall	0.776 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.303 in
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	11 AWG
Wire Gauge (AWG) (Min)	10 AWG

Ultra-Fast 250 Series

Part	Contact Material	Tab Thickness	Terminal Type	Termination	Mounting Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Gender	Tab Width	Length - Overall	Insulation	Contact Finish	Color	Insulation Diameter (Min)	Insulation Diameter (Max)	Insulation Diameter	Material	Note	Style	Terminal Size	Related Product Length	For Use With/Related Products	Number of Positions	Stacking Direction
TE Connectivity AMP Connectors 2-520405-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	18 AWG	22 AWG	Female	0.25 in	0.855 in	Fully Insulated	Tin	Red	0.06 in	0.135 in
TE Connectivity AMP Connectors 2-520183-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	18 AWG	22 AWG	Female	0.25 in	0.855 in	Fully Insulated	Tin	Red
TE Connectivity AMP Connectors 5-520263-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	18 AWG	22 AWG	Female	0.25 in	0.935 in	Fully Insulated	Tin	Red
TE Connectivity AMP Connectors 2-520103-2
TE Connectivity AMP Connectors 2-521192-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	18 AWG	22 AWG	Male	0.25 in	0.935 in	Fully Insulated	Tin	Red			0.23 in
TE Connectivity AMP Connectors 2-520184-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	18 AWG	22 AWG	Female	0.25 in	0.855 in	Fully Insulated	Tin	Red
TE Connectivity AMP Connectors 3-520141-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	14 AWG	16 AWG	Female	0.25 in	0.935 in	Fully Insulated	Tin	Blue			0.26 in
TE Connectivity AMP Connectors 2-520264-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	18 AWG	22 AWG	Female	0.25 in	0.935 in	Fully Insulated	Tin	Red			0.23 in
TE Connectivity AMP Connectors 2-521144-2	Brass	0.032 in	Standard	Crimp	Free Hanging (In-Line)	18 AWG	22 AWG	Male	0.25 in	0.935 in	Fully Insulated	Tin	Red			0.23 in
TE Connectivity AMP Connectors 344079-1			Disconnect Quick Connect		Free Hanging (In-Line)			Female Receptacle					Black				Nylon	Contacts Not Included	Housing	0.25 in	0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	8	Side to Side Top to Bottom
