SSI-LXR1612SRD

Active

Lumex Opto/Components Inc.

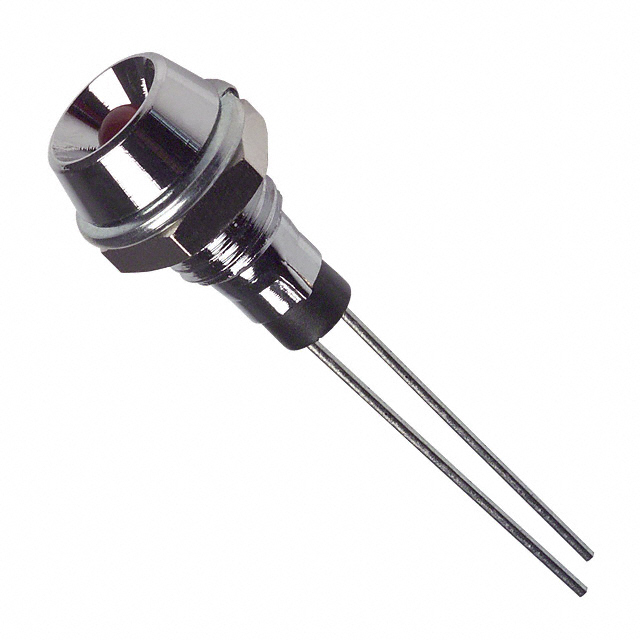

LED 3MM FLUSH SUP RED DIFF PNLMT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM FLUSH SUP RED DIFF PNLMT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 30° 1.8V 30mA

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED T-3MM W/LD 635NM RED DIFF

Part	Lens Transparency	Lamp Color	Type	Millicandela Rating	Lens Size	Lens Size	Termination Style	Viewing Angle	Current	Panel Cutout Shape	Lens Color	Lens Style	Wavelength - Peak	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions
Lumex Opto/Components Inc. SSI-LXR1612ID-150	Diffused	Red	LED	30 mcd	3 mm	T-1	Wire Leads - 6.000" (152.40mm)	60 °	30 mA	Round	Red	Round with Domed Top	635 nm	2 V
Lumex Opto/Components Inc. SSI-LXR1612SRD12V6
Lumex Opto/Components Inc. SSI-LXR1612SOD-150	Diffused	Orange	LED	900 mcd	3 mm	T-1		60 °		Round	Orange	Round with Domed Top	610 nm	2 V
Lumex Opto/Components Inc. SSI-LXR1612ID	Diffused	Red	LED	30 mcd	3 mm	T-1		60 °	30 mA	Round	Red		635 nm	2 V	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR1612YD	Diffused	Yellow	LED	30 mcd	3 mm	T-1		60 °	30 mA	Round	Yellow		585 nm	2.1 V	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR1612GD-250	Diffused	Green	LED	30 mcd	3 mm	T-1	Wire Leads - 9.8" (248.92mm)	60 °		Round	Green	Round with Domed Top	565 nm	2.2 V
Lumex Opto/Components Inc. SSI-LXR1612GD	Diffused	Green	LED	30 mcd	3 mm	T-1		60 °	25 mA	Round	Green		565 nm	2.2 V	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR1612SRD	Diffused	Red	LED	80 mcd	3 mm	T-1		30 °	30 mA	Round	Red		660 nm	1.8 V	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR1612GD-150	Diffused	Green	LED	30 mcd	3 mm	T-1		60 °	25 mA	Round	Green		565 nm	2.2 V	6.1 mm	0.24 in
