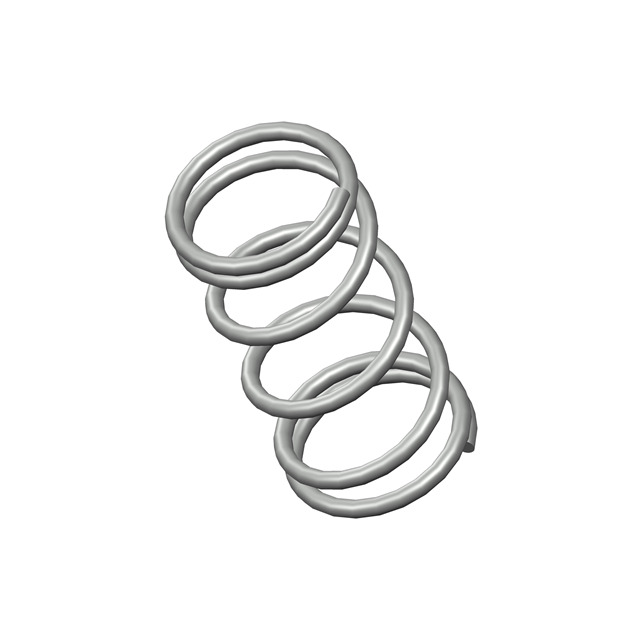

PP-74CS
ActiveCentury Spring Corp
COMP O= .234,L= .50,W= .022
PP-74CS
ActiveCentury Spring Corp
COMP O= .234,L= .50,W= .022
Description
General part information
PP-74CS
COMP O= .234,L= .50,W= .022
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-74CS |
|---|---|
| Diameter - Inside | 0.19 in |
| Diameter - Outside | 0.234 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Material | Music Wire |
| Rate (lbs/in) | 8.8 lbs/in |
| Type | Compression |
| Wire Diameter | 0.022 in |
