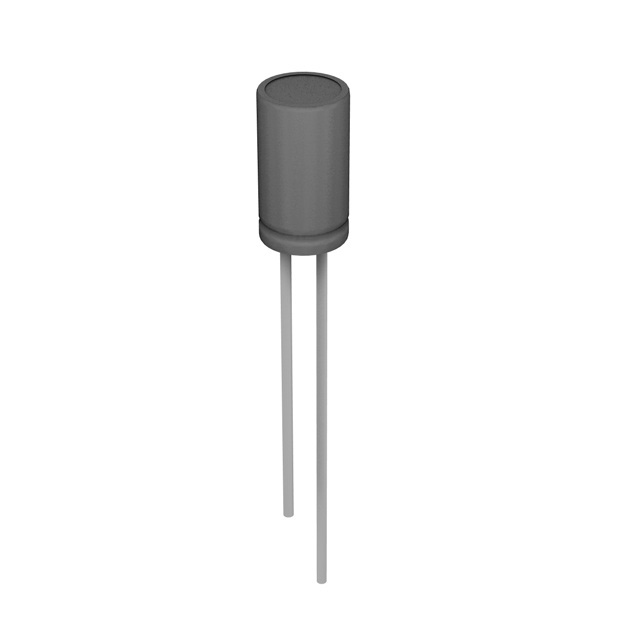

SS4R7M035ST
ObsoleteCornell Dubilier Knowles
CAP ALUM 4.7UF 20% 35V RADIAL TH
SS4R7M035ST
ObsoleteCornell Dubilier Knowles
CAP ALUM 4.7UF 20% 35V RADIAL TH
Description
General part information
SS4R7M035ST
4.7 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 33.88Ohm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SS4R7M035ST |
|---|---|
| Applications | General Purpose |
| Capacitance | 4.7 µF |
| ESR (Equivalent Series Resistance) | 33.88 Ohm |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.059 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 27.6 mA, 24 mA |
| Size / Dimension Diameter | 0.157 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
