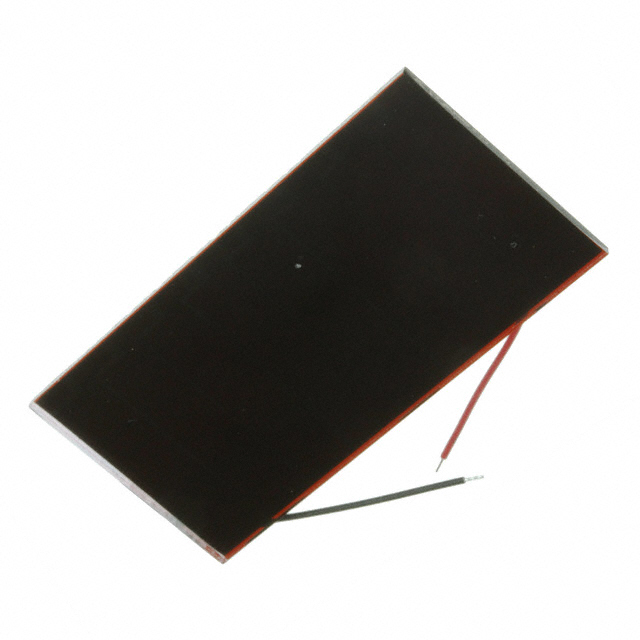

AM-1801CA-DGK-E
ActivePanasonic Industrial Automation Sales
AMORPHOUS SOLAR CELL 4.9V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM-1801CA-DGK-E |
|---|---|
| Current - Short Circuit (Isc) | 20 µA |
| Current @ Pmpp | 18.5 µA |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | Cells |
| Size / Dimension [x] | 25 mm |
| Size / Dimension [x] | 0.984 in |
| Size / Dimension [y] | 2.087 in |
| Size / Dimension [y] | 53 mm |
| Size / Dimension [z] | 0.043 " |
| Size / Dimension [z] | 1.1 mm |
| Type | Amorphous |
| Voltage - Open Circuit | 4.9 V |
| Voltage @ Pmpp | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.38 | |
| 20 | $ 3.72 | |||
| 40 | $ 3.47 | |||
| 200 | $ 3.15 | |||
| 400 | $ 2.95 | |||
| 600 | $ 2.81 | |||
Description
General part information
AM-1801CA Series
Amorphous Solar Cell 4.9 V
