B82141A1823J000
ActiveEPCOS - TDK Electronics
FIXED IND 82UH 175MA 3.2 OHM TH
B82141A1823J000
ActiveEPCOS - TDK Electronics
FIXED IND 82UH 175MA 3.2 OHM TH
Description
General part information
B82141A1823J000

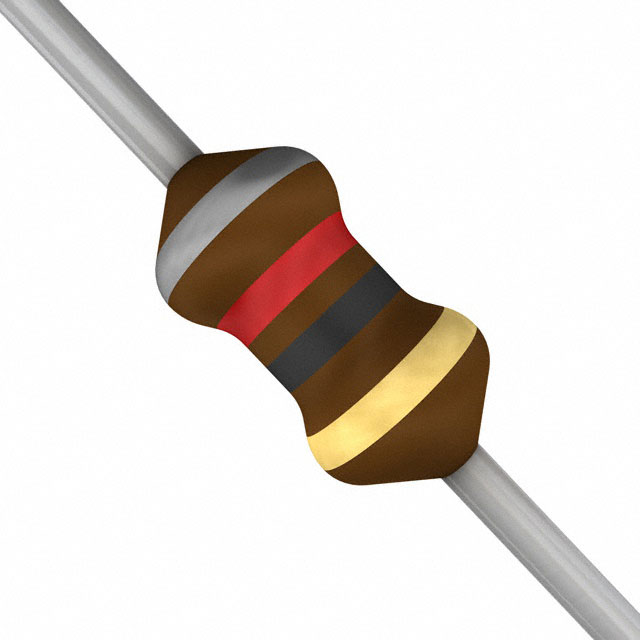

82 µH Unshielded Drum Core, Wirewound Inductor 175 mA 3.2Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82141A1823J000 |
|---|---|
| Current Rating | 175 mA |
| DC Resistance (DCR) (Max) | 3.2 Ohm |
| Frequency - Self Resonant | 5.5 MHz |
| Inductance | 82 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.118 in |
| Size / Dimension Length | 0.268 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
