LCCA31067-FT4
ActivePasternack
LOW PIM 2.2-5 MALE TO QMA MALE C
LCCA31067-FT4
ActivePasternack
LOW PIM 2.2-5 MALE TO QMA MALE C
Description
General part information
LCCA31067-FT4

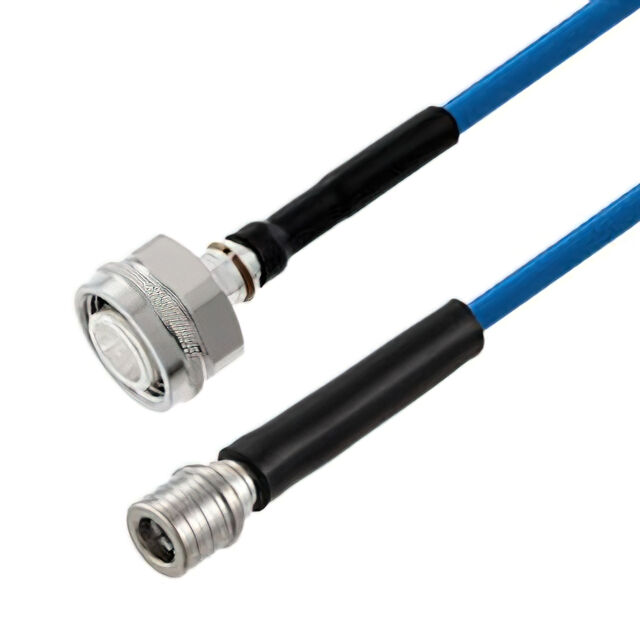

Cable Assembly Coaxial 2.2/5 to QMA TFT-402LF 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31067-FT4 |
|---|---|
| 1st Connector | 2.2/5 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 2.2 mm |
| 1st Connector Dimension (2) | 5 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 402LF, TFT |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 48 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.2/5 to QMA |
