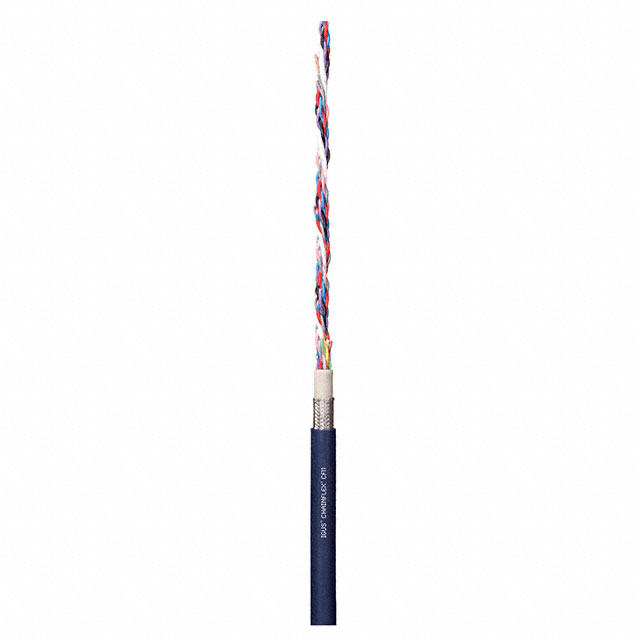

CF11-02-04-02

Active

Igus

MULTI-PAIR 8COND 24AWG BLUE FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF11-02-04-02

Active

Igus

MULTI-PAIR 8COND 24AWG BLUE FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF11-02-04-02	CF11 Series

Cable Type	Multi-Pair	Multi-Pair, Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare	Copper, Bare, Copper, Tinned
Features	Oil Resistant, Abrasion Resistant, UV Resistant	Oil Resistant, Abrasion Resistant, Rip Cord, UV Resistant
Jacket (Insulation) Diameter	-	13.99 mm
Jacket (Insulation) Diameter [diameter]	8.51 mm	0.551 - 16.51 mm
Jacket (Insulation) Diameter [diameter]	0.335 "	0.236 - 0.65 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Jacket Color	Blue	Blue, Green, Yellow
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	8	2 - 28
Number of Conductors	-	3
Number of Conductors	-	5 - 11
Number of Conductors	-	17
Shield Coverage	70 %, 100 %	70 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Foil, Braid
Usage	-	Industrial, Data
Voltage	300 V	50 - 300 V
Wire Gauge	24 AWG	16 - 26 AWG
Wire Gauge	-	22, 20, 20 AWG, 26 AWG, 24 AWG

CF11 Series

MULTI-PAIR 20COND 24AWG BLU FEET

Part	Number of Conductors	Length	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Type	Usage	Cable Type	Features	Jacket Color	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Shield Material	Conductor Insulation	Wire Gauge	Jacket (Insulation) Diameter [diameter]
Igus CF11-02-10-02	20	Enter Number of Feet in Order Quantity	300 V	13.49 mm	0.531 in	90 %, 100 %	Braid, Foil	Data, Industrial	Multi-Pair	Abrasion Resistant, Oil Resistant	Blue	24 AWG	Copper, Bare	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)
Igus CF11-011-D	12	Enter Number of Feet in Order Quantity	50 V	10.01 mm	0.394 in	90 %, 100 %	Braid, Foil		Multi-Conductor	Abrasion Resistant, Oil Resistant, Rip Cord	Green, Yellow		Copper, Tinned	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)	20, 22
Igus CF11-02-03-02	6	Enter Number of Feet in Order Quantity	300 V			70 %, 100 %	Braid, Foil		Multi-Pair	Abrasion Resistant, Oil Resistant, UV Resistant	Blue	24 AWG	Copper, Bare	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)
Igus CF11-002-D	8	Enter Number of Feet in Order Quantity	50 V	10.01 mm	0.394 in	90 %, 100 %	Braid, Foil		Multi-Conductor	Abrasion Resistant, Oil Resistant, Rip Cord	Green, Yellow		Copper, Tinned	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)	20 AWG, 26 AWG
Igus CF11-03-08-02	16	Enter Number of Feet in Order Quantity	300 V	13.01 mm	0.512 in	70 %, 100 %	Braid, Foil		Multi-Pair	Abrasion Resistant, Oil Resistant, UV Resistant	Blue	22 AWG	Copper, Bare	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)
Igus CF11-02-06-02	12	Enter Number of Feet in Order Quantity	300 V	10.01 mm	0.394 in	70 %, 100 %	Braid, Foil		Multi-Pair	Abrasion Resistant, Oil Resistant, UV Resistant	Blue	24 AWG	Copper, Bare	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)
Igus CF11-022-D	7	Enter Number of Feet in Order Quantity	50 V	7.49 mm	0.295 in	90 %, 100 %	Braid, Foil		Multi-Conductor	Abrasion Resistant, Oil Resistant, Rip Cord	Green, Yellow	20 AWG, 24 AWG	Copper, Tinned	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)
Igus CF11-15-06-02	12	Enter Number of Feet in Order Quantity	300 V	16.51 mm	0.65 in	90 %, 100 %	Braid, Foil	Data, Industrial	Multi-Pair	Abrasion Resistant, Oil Resistant	Blue	16 AWG	Copper, Bare	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)
Igus CF11-05-08-02	16	Enter Number of Feet in Order Quantity	300 V	0.551 "		70 %, 100 %	Braid, Foil		Multi-Pair	Abrasion Resistant, Oil Resistant, UV Resistant	Blue	20 AWG	Copper, Bare	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)		13.99 mm
Igus CF11-05-06-02	12	Enter Number of Feet in Order Quantity	300 V	11.99 mm	0.472 in	70 %, 100 %	Braid, Foil		Multi-Pair	Abrasion Resistant, Oil Resistant, UV Resistant	Blue	20 AWG	Copper, Bare	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	Thermoplastic Elastomer (TPE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.16
		500	$ 7.84
		1000	$ 7.54

Description

General part information

CF11 Series

8 (4 Pair Twisted) Conductor Multi-Pair Cable Blue 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
