KAL5FB1R00
ObsoleteStackpole Electronics Inc
RES CHAS MNT 1 OHM 1% 7.5W
KAL5FB1R00
ObsoleteStackpole Electronics Inc
RES CHAS MNT 1 OHM 1% 7.5W
Description
General part information
KAL5FB1R00

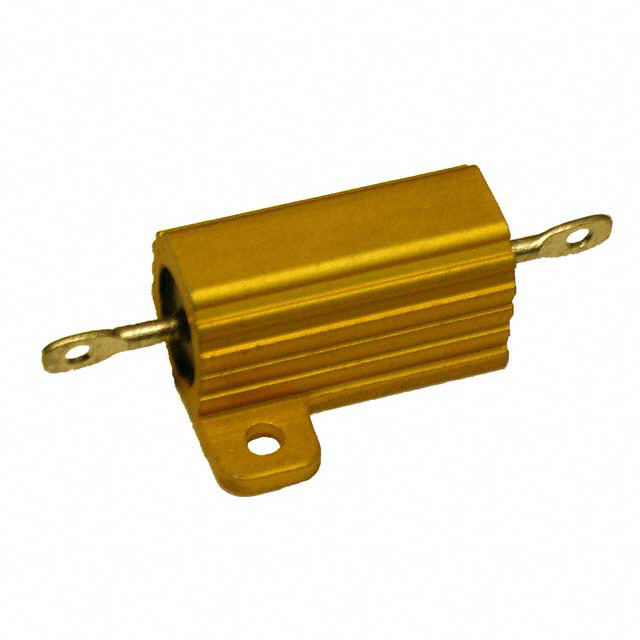

1 Ohms ±1% 7.5W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | KAL5FB1R00 |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Moisture Resistant |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box, Axial |
| Power (Watts) | 7.5 W |
| Resistance | 1 Ohm |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.65 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
