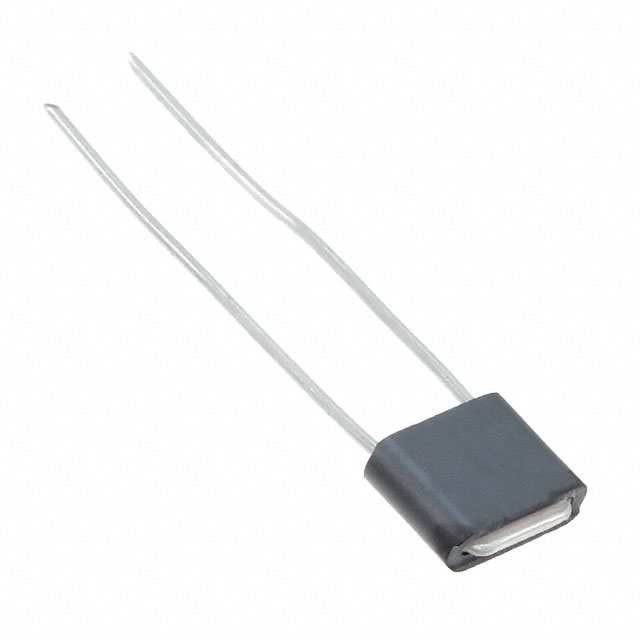

FBR07HA850NB-00
ObsoleteTaiyo Yuden
FERRITE BEAD 85 OHM RADIAL 1LN
FBR07HA850NB-00
ObsoleteTaiyo Yuden
FERRITE BEAD 85 OHM RADIAL 1LN
Description
General part information
FBR07HA850NB-00
85 Ohms @ 50 MHz 1 Ferrite Bead Radial 7A 10mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | FBR07HA850NB-00 |
|---|---|
| Current Rating (Max) | 7 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Height (Max) | 0.217 in |
| Impedance | 85 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Radial |
| Size / Dimension Diameter | 0.295 in |
