LCCA30495-FT1
ActivePasternack
COAX CBL SMA TO TNC 12"
LCCA30495-FT1
ActivePasternack
COAX CBL SMA TO TNC 12"
Description
General part information
LCCA30495-FT1

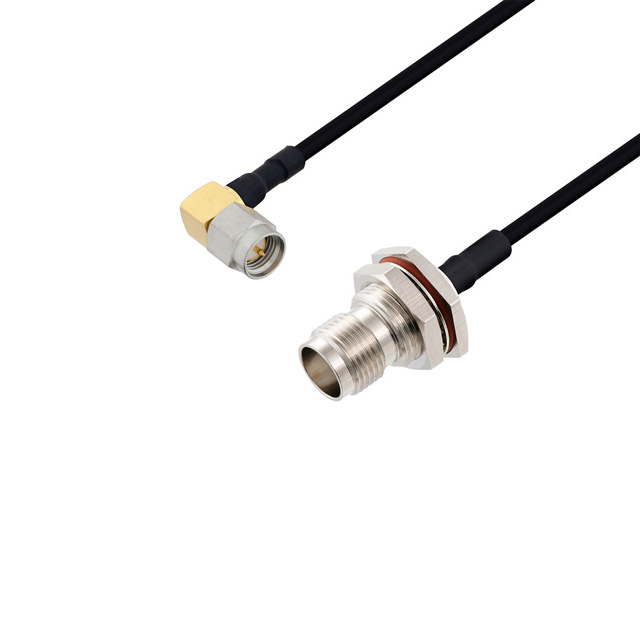

Cable Assembly Coaxial SMA to TNC LC141TBJ 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30495-FT1 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 12 in |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
