X9001376-4GDSMB
ActiveKYOCERA AVX
CELLULAR/LPWA WHIP EXTERNAL ANTE
X9001376-4GDSMB
ActiveKYOCERA AVX
CELLULAR/LPWA WHIP EXTERNAL ANTE
Description
General part information

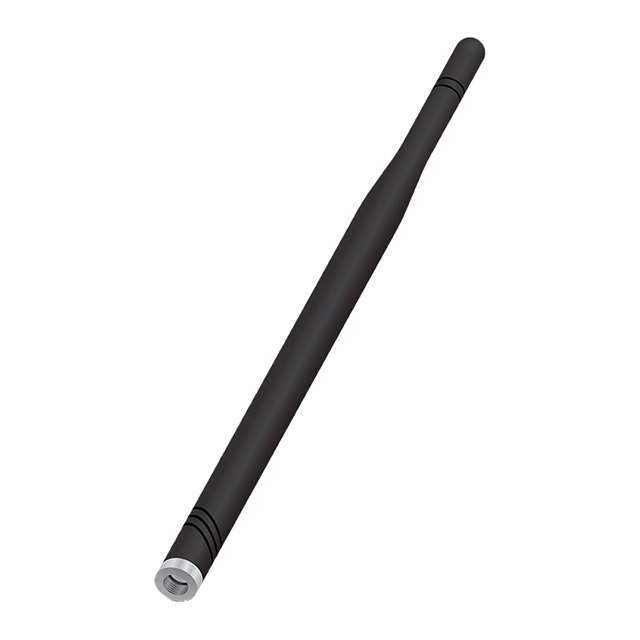

X9001376-4GDSMB
RF ANTENNA LoRa, LPWAN, LTE, Sigfox Whip, Straight SMA Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | X9001376-4GDSMB |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LoRa, LPWAN, Sigfox, LTE |
| Frequency (Band) | 2.2 GHz |
| Frequency (Center) | 875 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 790 MHz |
| Frequency Range (Band 2) Maximum | 2.69 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 1.16 dBi, 2.5 dBi |
| Height (Max) | 7.087 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Return Loss | -7.33dB, -9dB |
| Return Loss | -7.33 dB, -9 dB |
| RF Family/Standard | Cellular |
| Termination | SMA |
