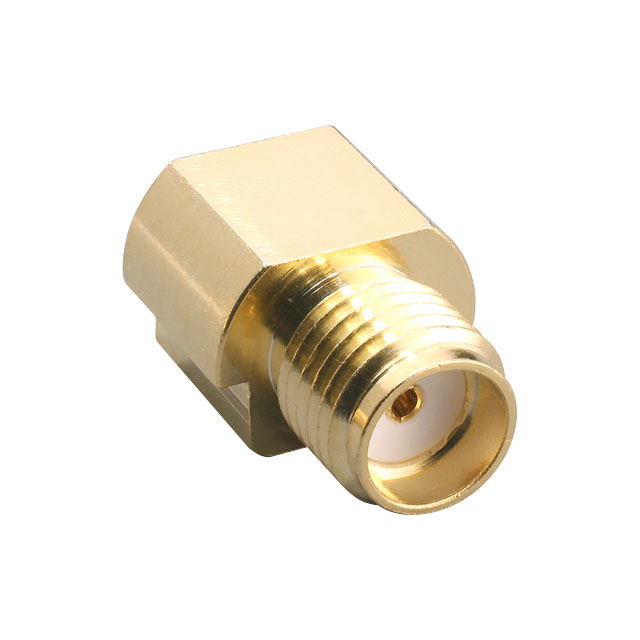

Specification	CONSMA024-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Cutout, Surface Mount, Board Edge
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	750 VDC

CONSMA Series

Part	Dielectric Material	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Mating Cycles	Center Contact Plating	Shield Termination	Center Contact Material	Impedance	Frequency - Max	Number of Ports	Mounting Type	Contact Termination	Fastening Type	Housing Color	Connector Type	Connector Style	Features	Mounting Feature	Voltage Rating	Includes Total Count	Includes	Cable Group	Style	Center Gender	Conversion Type	Adapter Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Adapter Series	Convert From (Adapter End)
TE Connectivity AMP Connectors CONSMA001	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold	Solder	Beryllium Copper	50 Ohm	12.4 GHz	1	Through Hole	Solder	Threaded	Silver	Female Socket Recepture	SMA
TE Connectivity AMP Connectors CONSMA018-4-G	Polytetrafluoroethylene (PTFE)	Brass	-55 °C	155 °C	Gold	500 cycles	Gold	Solder	Beryllium Copper	50 Ohm	18 GHz	1	Panel Mount	Solder	Threaded	Gold	Female Socket Jack	SMA	Extended Insulation	Flange	1500 V
TE Connectivity AMP Connectors CONSMA003.031-L	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold	Solder	Beryllium Copper	50 Ohm	18 GHz	1	Board Edge End Launch Panel Mount	Solder	Threaded	Silver	Female Socket Recepture	SMA		Bulkhead Front Side Nut		3 pcs	Connector Lockwasher Nut
TE Connectivity AMP Connectors CONSMA001-SMD	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold	Solder	Beryllium Copper	50 Ohm	18 GHz	1	Surface Mount	Solder	Threaded	Silver	Female Socket Recepture	SMA
TE Connectivity AMP Connectors CONSMA014	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold	Crimp	Brass	50 Ohm	12.4 GHz	1	Panel Mount	Solder	Threaded	Silver	Female Socket Recepture	SMA		Bulkhead Front Side Nut	335 V	7 pcs	Connector Contact Ferrule Gasket Heat Shrink Lockwasher Nut	RG-174
TE Connectivity AMP Connectors CONSMA010	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold		Beryllium Copper	50 Ohm	12.4 GHz		Free Hanging (In-Line) Right Angle		Threaded										Right Angle	Female Male	Same Series	Plug to Jack	Female Socket	SMA Jack	SMA to SMA	Male Pin SMA Plug
TE Connectivity AMP Connectors CONSMA011-R178	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold	Crimp	Beryllium Copper	50 Ohm	12.4 GHz	1	Free Hanging (In-Line)	Solder	Threaded	Silver	Female Socket Recepture	SMA			250 V	5 pcs	Connector Contact Heat Shrink Spacer Support	RG-178
TE Connectivity AMP Connectors CONSMA006.062	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold	Solder	Beryllium Copper	50 Ohm	18 GHz	1	Board Edge End Launch Panel Mount	Solder	Threaded	Silver	Female Socket Recepture	SMA		Bulkhead Front Side Nut		3 pcs	Connector Lockwasher Nut
TE Connectivity AMP Connectors CONSMA002-SMD	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Nickel	500 cycles	Gold	Solder	Beryllium Copper	50 Ohm	18 GHz	1	Right Angle Surface Mount	Solder	Threaded	Silver	Female Socket Recepture	SMA
TE Connectivity AMP Connectors CONSMA011-G	Polytetrafluoroethylene (PTFE)	Brass	-65 °C	165 °C	Gold	500 cycles	Gold	Crimp	Beryllium Copper	50 Ohm	18 GHz	1	Free Hanging (In-Line)	Solder	Threaded	Gold	Female Socket Recepture	SMA			335 V	4 pcs	Connector Contact Ferrule Heat Shrink	RG-174
