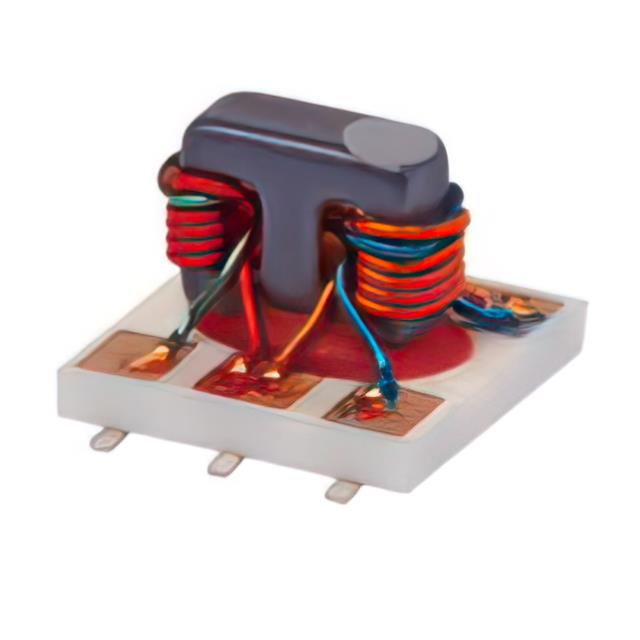

DBTC-12-4L+
ActiveMini-Circuits
12.2 DB SMT DIR COUP, 5-1000 MHZ
DBTC-12-4L+
ActiveMini-Circuits
12.2 DB SMT DIR COUP, 5-1000 MHZ
Description
General part information
DBTC-12-4L+
RF Directional Coupler Cellular 5MHz ~ 1GHz 12.2 ± 0.5dB 1W 6-SMD, Flat Leads, 5 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | DBTC-12-4L+ |
|---|---|
| Applications | Cellular |
| Coupler Type | Standard |
| Coupling Factor | 12.2 dB |
| Coupling Factor Tolerance | 0.5 dB |
| Frequency (Max) | 1 GHz |
| Frequency (Min) | 5 MHz |
| Package Leads | 5 Leads |
| Package Name | 6-SMD |
| Power - Max | 1 VA |
