20-101-1196
ObsoleteDigi International
IC MOD RABBIT 3000 44.2MHZ 1MB
20-101-1196
ObsoleteDigi International
IC MOD RABBIT 3000 44.2MHZ 1MB
Description
General part information
20-101-1196

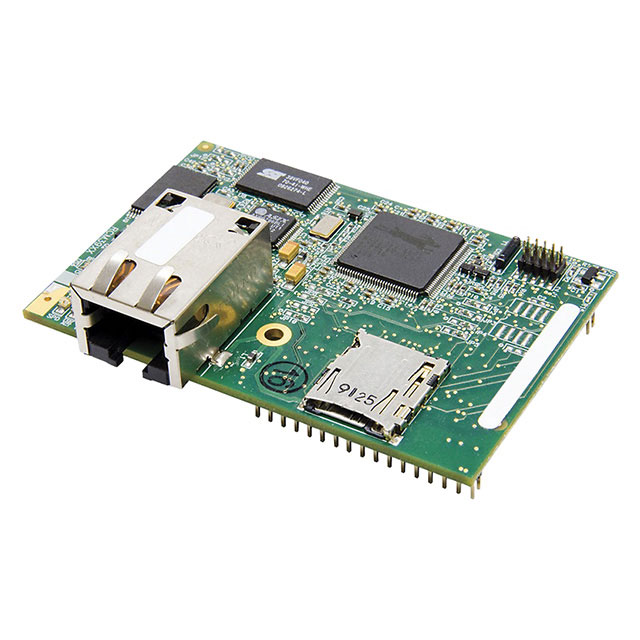

RabbitCore RCM3900 Embedded Module Rabbit 3000 44.2MHz 1MB 512KB (Internal), 32MB (External), microSD Slot (External)
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-101-1196 |
|---|---|
| Connector Pins per Row | 17, 5 |
| Connector Rows | 2 |
| Connector Type | 1 IDC Header, 2 IDC Headers, 1xmicroSD Card, 2 IDC Headers 2x17, 1 IDC Header 2x5 |
| Core Processor | Rabbit 3000 |
| External Storage | microSD Slot (External) |
| Flash Size (External) | 32 MB |
| Flash Size (Internal) | 512 KB |
| Module/Board Type | MPU Core |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| RAM Size | 1 MB |
| Size / Dimension Length | 1.85 in |
| Size / Dimension Width | 2.73 in |
| Speed | 44.2 MHz |
