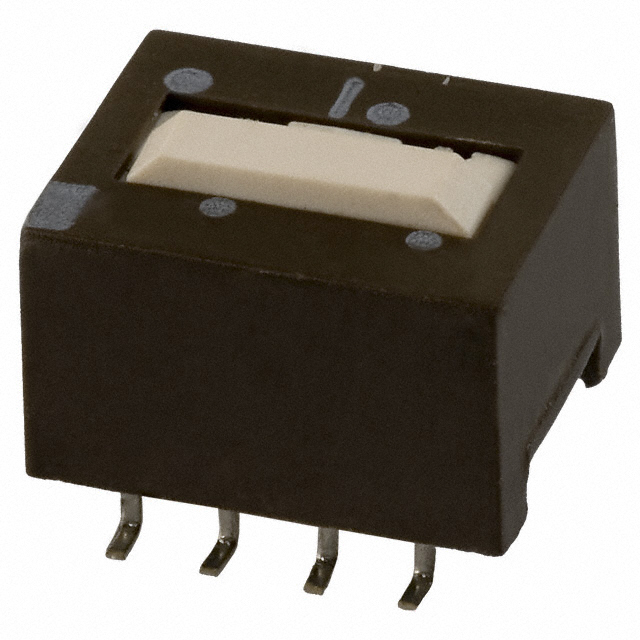

204-221STR
ObsoleteCTS Electrocomponents
SWITCH SLIDE DIP DPDT 0.05A 24V
204-221STR
ObsoleteCTS Electrocomponents
SWITCH SLIDE DIP DPDT 0.05A 24V
Description
General part information
204-221STR
Dip Switch DPDT 1 Position Surface Mount Slide (Standard) Actuator 50mA 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 204-221STR |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Plastic |
| Circuit | DPDT |
| Contact Finish | Gold |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 5000 Cycles |
| Features | Epoxy Sealed Terminals, Tape Seal |
| Height Above Board | 0.394 in |
| Mounting Type | Surface Mount |
| Number of Positions | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | Gull Wing |
| Voltage Rating | 24 V |
| Washable | Yes |
