6-487509-0
ActiveTE Connectivity AMP Connectors

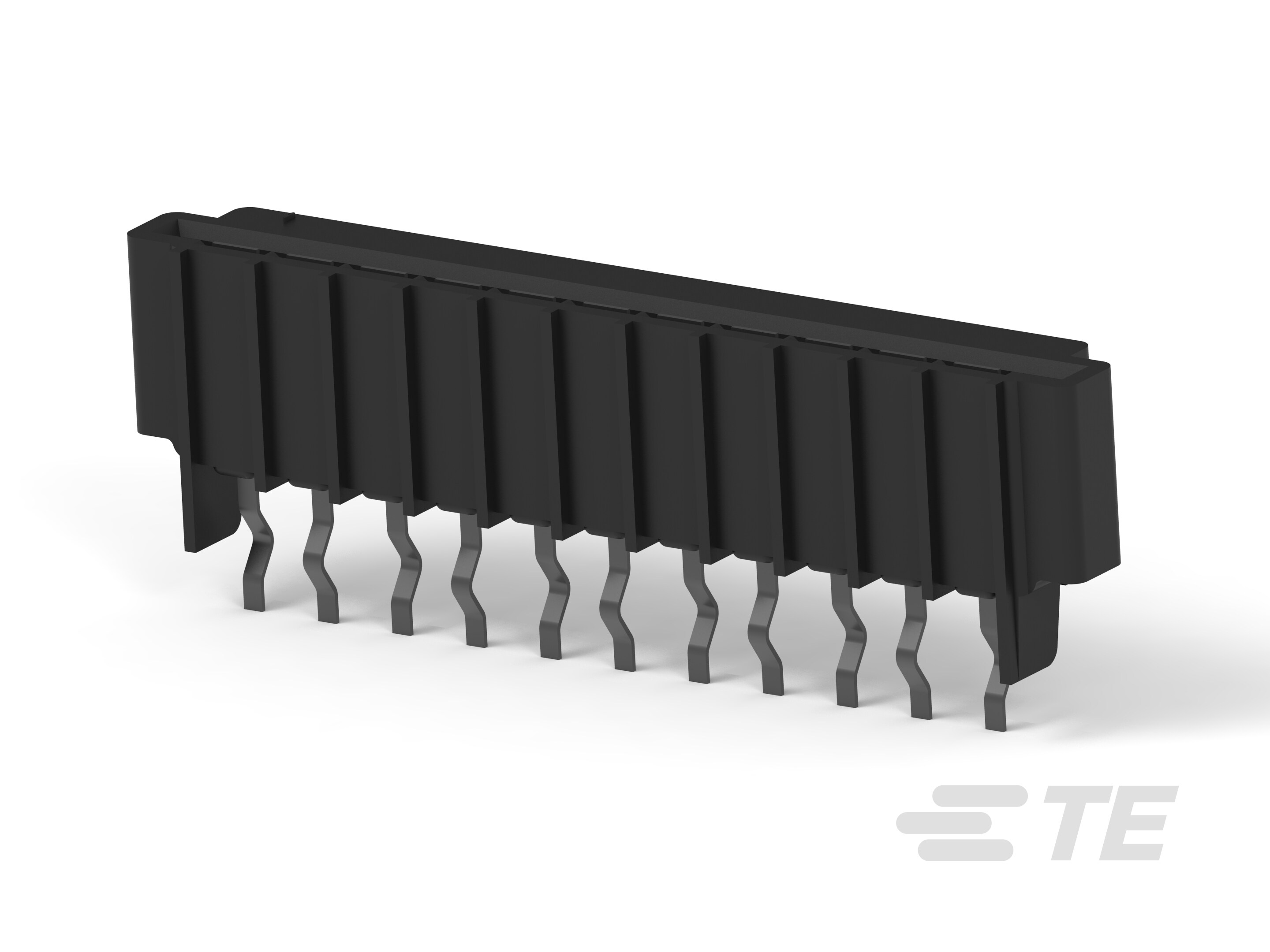

TRIOMATE ASY V11P L=4.064,LDFR
6-487509-0
ActiveTE Connectivity AMP Connectors
TRIOMATE ASY V11P L=4.064,LDFR
Description
General part information
6-487509-0
Connector Assembly, Wire-to-Board, 11 Position, 2.54 mm [.1 in] Centerline, 1 Row, Vertical, Socket, Tray, TRIO-MATE, FFC Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-487509-0 |
|---|---|
| Connector/Contact Type | Contacts, 1 Sided, Vertical |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness (Max) | 0.38 mm |
| FFC, FCB Thickness (Min) | 0.13 mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.19 in |
| Housing Material | Glass Filled, Polyester Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Termination | Kinked Pin |
| Voltage Rating | 250 V |
