14-522.0360 - 14-522.0360

14-522.0360

Active
EAO

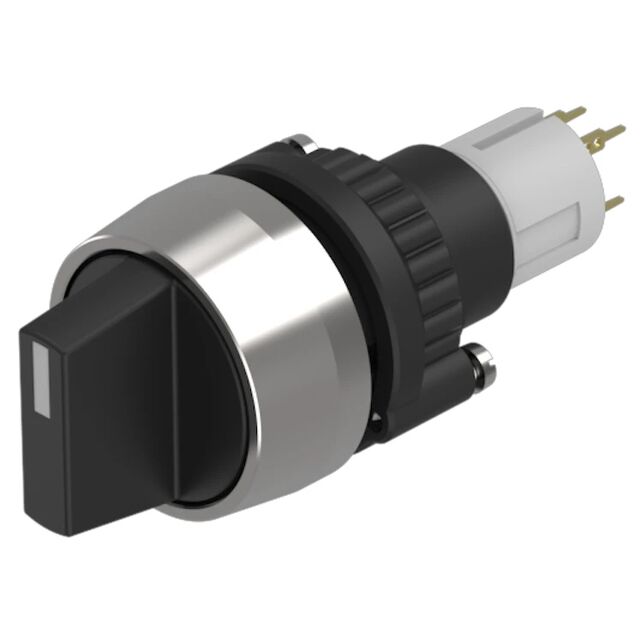

SELECTOR SWITCH 2 POSITIONS MAIN SHORT LEVER LL 1NC+1NO UT D29 GOLD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN14-415.036K_Brochure 2+2
14-522.0360 - 14-522.0360

14-522.0360

Active
EAO

SELECTOR SWITCH 2 POSITIONS MAIN SHORT LEVER LL 1NC+1NO UT D29 GOLD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN14-415.036K_Brochure 2+2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification14-522.036014-522 Series
Approval Agency-CE, CQC
Circuit-DPST-NO/NC
Current Rating (Amps)-100 mA
Depth Behind Flange-35.5 mm
Features-Bezel - Round, Black Knob
Illumination-Non-Illuminated
Ingress Protection-IP67 - Dust Tight, Waterproof
Mechanical Life-1000000 Cycles
null-
Number of Positions-2
Operating Temperature-55 °C
Operating Temperature--25 °C
Panel Cutout Dimensions-22.3 mm
Switch Function-On-Off, Off-On
Type-Standard
Voltage Rating - AC-42 V
Voltage Rating - DC-42 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 46.19
10$ 39.85
25$ 37.57
50$ 35.92
100$ 34.35
250$ 32.37
NewarkEach 1$ 42.77
5$ 41.11
10$ 38.50
25$ 37.31
50$ 34.22
100$ 33.03
250$ 32.08

14-522 Series

SELECTOR SWITCH 2 POSITIONS MAIN SHORT LEVER LL 1NC+1NO UT D29 GOLD ROHS COMPLIANT: YES

PartDepth Behind FlangeFeaturesNumber of PositionsIlluminationCurrent Rating (Amps)Switch FunctionOperating Temperature [Max]Operating Temperature [Min]Ingress ProtectionMechanical LifeVoltage Rating - DCTypeVoltage Rating - ACApproval AgencyCircuitPanel Cutout Dimensions [diameter]
EAO
14-522.0360
EAO
14-522.0360
35.5 mm
Bezel - Round, Black Knob
2
Non-Illuminated
100 mA
Off-On, On-Off
55 °C
-25 °C
IP67 - Dust Tight, Waterproof
1000000 Cycles
42 V
Standard
42 V
CE, CQC
DPST-NO/NC
22.3 mm

Description

General part information

14-522 Series

Selector Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 V Panel Mount
