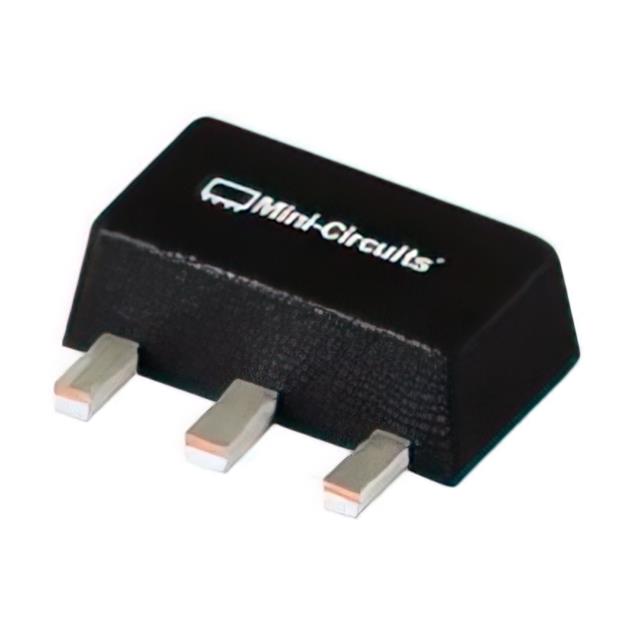

PHA-83W+
ActiveMini-Circuits
SMT GAIN BLOCK, 50 - 8000 MHZ
PHA-83W+
ActiveMini-Circuits
SMT GAIN BLOCK, 50 - 8000 MHZ
Description
General part information
PHA-83W+
RF Amplifier IC LTE, Radar, SATCOM, WiFi, WiMAX, WLAN 50MHz ~ 8GHz SOT-89
Technical Specifications
Parameters and characteristics for this part
| Specification | PHA-83W+ |
|---|---|
| Current - Supply | 110 mA |
| Frequency (Max) | 8 GHz |
| Frequency (Min) | 50 MHz |
| Gain | 12.4 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 3.4 dB |
| P1dB | 23.3 dBm |
| Package / Case | TO-243AA |
| Package Name | SOT-89 |
| RF Type | Radar, WiFi, SATCOM, WLAN, WiMAX, LTE |
| Test Frequency | 2 GHz |
| Voltage - Supply (Maximum) | 9.5 V |
| Voltage - Supply (Minimum) | 8.5 V |
