L000926-20
ActiveTE Connectivity AMP Connectors

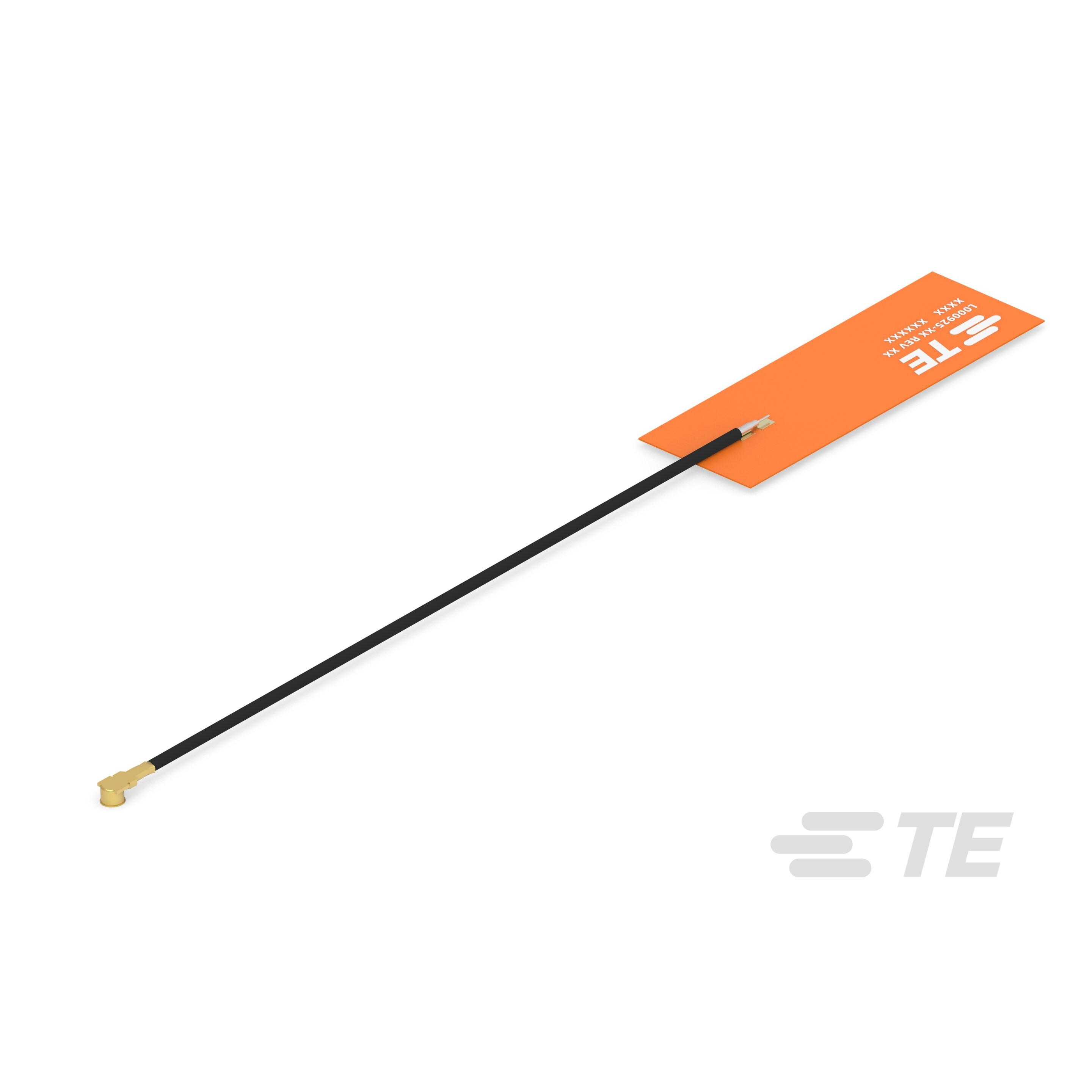

ANTENNA 433MHZ FPC 1.13 COAX 200MM MHF4L
L000926-20
ActiveTE Connectivity AMP Connectors
ANTENNA 433MHZ FPC 1.13 COAX 200MM MHF4L
Description
General part information
L000926-20
Flexible PCB (FPC) Antenna, Single Band, LoRaWAN, Internal/Embedded Mount, Adhesive Mount, MHF4, Omnidirectional, Single Port, < 0 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000926-20 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | LTE, LPWA, LoRaWAN, IoT |
| Features | Cable, 200mm |
| Frequency (Center/Band) | 432.5MHz, 460MHz, 420MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Band 1) Maximum | 430 MHz |
| Frequency Range (Band 1) Minimum | 410 MHz |
| Frequency Range (Band 2) Maximum | 435 MHz |
| Frequency Range (Band 2) Minimum | 430 MHz |
| Frequency Range (Band 3) Maximum | 470 MHz |
| Frequency Range (Band 3) Minimum | 450 MHz |
| Gain | -4.09 dBi, -3.69 dBi, -4.28 dBi |
| Height (Max) | 0.008 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| RF Family/Standard | Cellular |
| Termination | MHF4L |
| VSWR | 4, 4.3, 3.1 |
