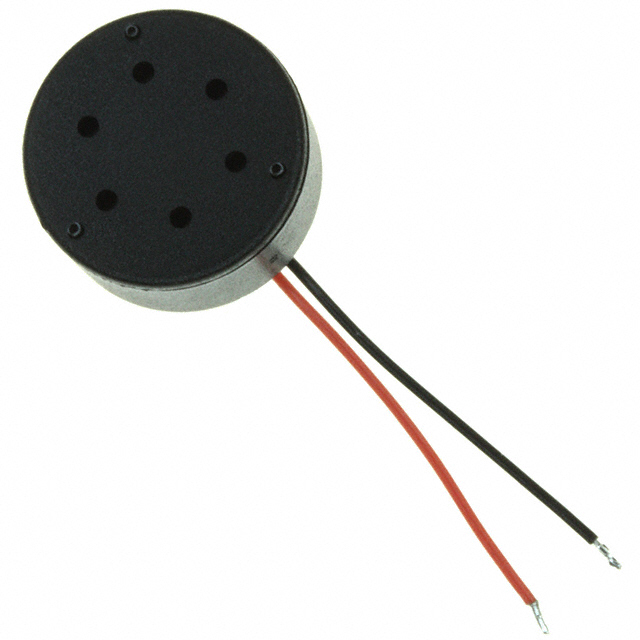

CM-23299-000
ObsoleteKnowles Syfer
SPEAKER 150OHM TOP PORT 107DB
CM-23299-000
ObsoleteKnowles Syfer
SPEAKER 150OHM TOP PORT 107DB
Description
General part information
CM-23299-000
150 Ohms Receiver, Balanced Armature Speaker 100 Hz ~ 5 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | CM-23299-000 |
|---|---|
| Efficiency - dBA | 107 dBA |
| Efficiency - Type | Sensitivity |
| Frequency Range (Max) | 5 kHz |
| Frequency Range (Min) | 100 Hz |
| Height - Seated (Max) | 0.325 in |
| Impedance | 150 Ohm |
| Port Location | Top |
| Shape | Round |
| Size / Dimension Diameter | 0.651 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | Balanced Armature, Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
